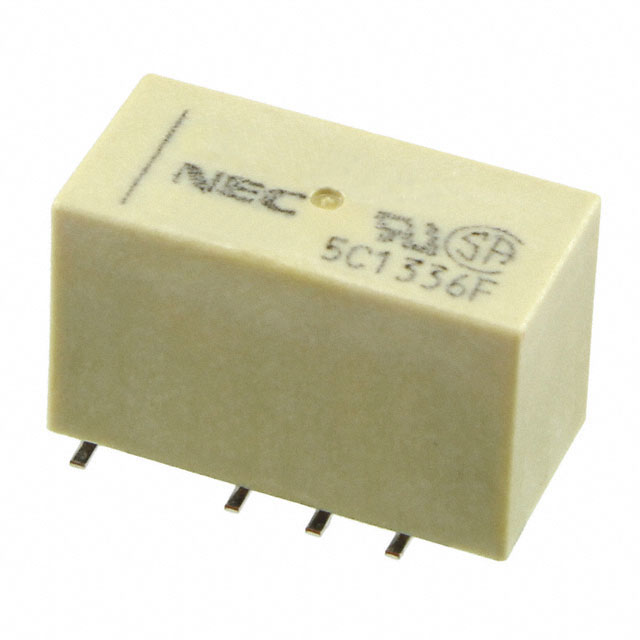

| Part Number | EE2-12NU |
|---|
| Manufacturer | Kemet |
|---|
| Description | RELAY GEN PURPOSE DPDT 2A 12V |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Relays |
|---|
| Series | EE2 |
|---|
| Family | Signal Relays, Up to 2 Amps |
|---|
| Featured Product |
EE2 and EC2 Electromechanical Signal Relays
|
|---|
| EDA / CAD Models |
Download from Accelerated Designs |
|---|
| Standard Package | 35 |
|---|
| Packaging | Tube |
|---|
| Relay Type | General Purpose |
|---|
| Coil Type | Non Latching |
|---|
| Coil Current | 11.7mA |
|---|
| Coil Voltage | 12VDC |
|---|
| Contact Form | DPDT (2 Form C) |
|---|
| Contact Rating (Current) | 2A |
|---|
| Switching Voltage | 250VAC, 220VDC - Max |
|---|
| Turn On Voltage (Max) | 9 VDC |
|---|
| Turn Off Voltage (Min) | 1.2 VDC |
|---|
| Operate Time | 2ms |
|---|
| Release Time | 1ms |
|---|
| Features | - |
|---|
| Mounting Type | Surface Mount |
|---|
| Termination Style | Gull Wing |
|---|
| Contact Material | Silver Alloy, Gold Alloy |
|---|
| Coil Power | 140 mW |
|---|
| Coil Resistance | 1.03 kOhms |
|---|
| Operating Temperature | -40°C ~ 85°C |
|---|
| Online Catalog | EC2 and EE2 Series |
|---|
| Other Names | 399-11033-5 |
|---|
