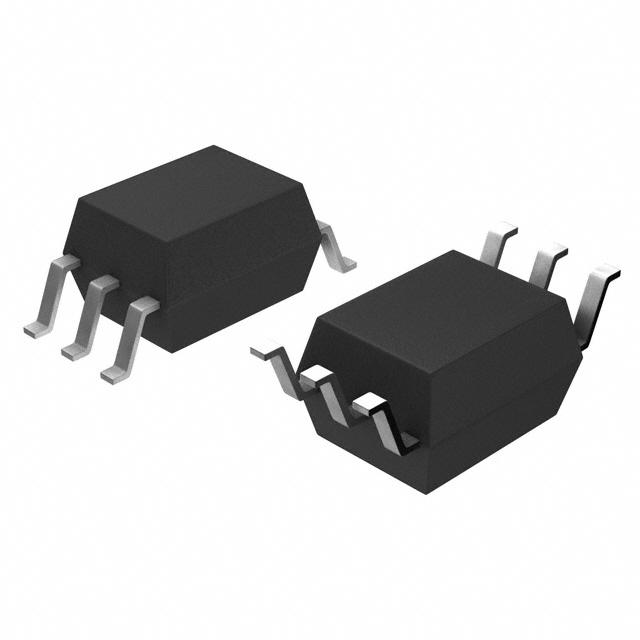

| Part Number | AQV212SZ |
|---|
| Manufacturer | Panasonic Electric Works |
|---|
| Description | RELAY OPTO SPST 60V 500MA 60V |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Relays |
|---|
| Series | PhotoMOS? AQV |
|---|
| Family | Solid State Relays |
|---|
| Other Related Documents |
AQx REACH Cert of Compliance
How to Read Date Codes
|
|---|
| Mfg Application Notes |
Working with Optically-Isolated Relays
|
|---|
| Product Training Modules |
PhotoMOS Solid State Relays
|
|---|
| Design Resources |
PhotoMOS Schematic & Wiring Diagrams
|
|---|
| EDA / CAD Models |
Download from Accelerated Designs |
|---|
| Standard Package | 1,000 |
|---|
| Packaging | Tape & Reel (TR) |
|---|
| Circuit | SPST-NO (1 Form A) |
|---|
| Output Type | AC, DC |
|---|
| On-State Resistance | 2.5 Ohm |
|---|
| Load Current | 500mA |
|---|
| Voltage - Input | 1.14VDC |
|---|
| Voltage - Load | 0 ~ 60 V |
|---|
| Mounting Type | Surface Mount |
|---|
| Termination Style | Gull Wing |
|---|
| Package / Case | 6-SOP (0.173", 4.40mm) |
|---|
| Supplier Device Package | 6-SOP |
|---|
| Relay Type | Relay |
|---|
| Online Catalog | PhotoMOS? AQV Series |
|---|
| Other Names | 255-2111-2AQV212SZ-ND |
|---|
