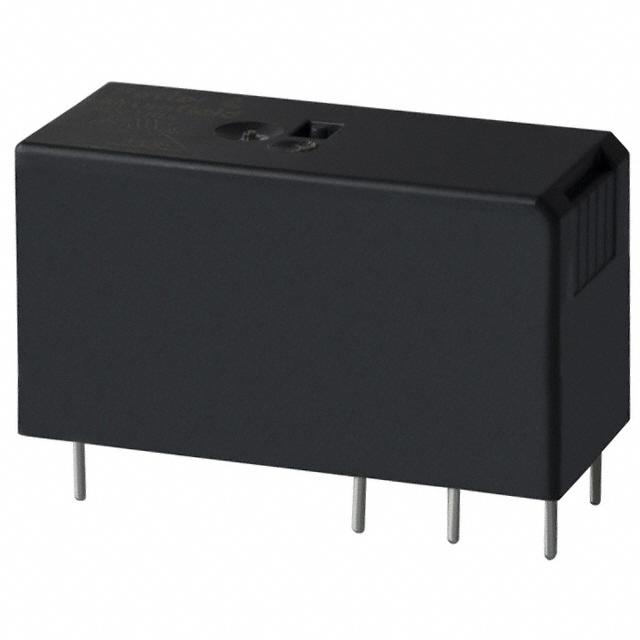

| Part Number | RT424012F |
|---|
| Manufacturer | TE Connectivity Potter & Brumfield Relays |
|---|
| Description | RELAY GEN PURPOSE DPDT 8A 12V |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Relays |
|---|
| Series | RT2 |
|---|
| Family | Power Relays, Over 2 Amps |
|---|
| Featured Product |
Plug-In Relays
|
|---|
| 3D Model |
2-1393237-8.pdf
|
|---|
| PCN Design/Specification |
2 Pole RT Series C/O Contacts 23-Jan-2015
|
|---|
| Standard Package | 20 |
|---|
| Packaging | Tube |
|---|
| Relay Type | General Purpose |
|---|
| Coil Type | Non Latching |
|---|
| Coil Current | 33.3mA |
|---|
| Coil Voltage | 12VDC |
|---|
| Contact Form | DPDT (2 Form C) |
|---|
| Contact Rating (Current) | 8A |
|---|
| Switching Voltage | 400VAC - Max |
|---|
| Turn On Voltage (Max) | 8.4 VDC |
|---|
| Turn Off Voltage (Min) | 1.2 VDC |
|---|
| Operate Time | 8ms |
|---|
| Release Time | 6ms |
|---|
| Features | Insulation - Class F, Sealed - Flux Protection |
|---|
| Mounting Type | Through Hole |
|---|
| Termination Style | PC Pin |
|---|
| Contact Material | Silver Nickel (AgNi) |
|---|
| Coil Power | 400 mW |
|---|
| Coil Resistance | 360 Ohms |
|---|
| Operating Temperature | -40°C ~ 85°C |
|---|
| Online Catalog | RT2 Series |
|---|
| Associated Product | PB525-ND - SOCKET PCB TERMINAL RT SERIESPB1771-ND - SOCKET 5MM W/SCREW TERM DINPB780-ND - SOCKET 5MM W/SCREW TERM DINPB1240-ND - SOCKET W/O SCREW FOR DINRAIL |
|---|
| Other Names | 2-1393237-8PB968 |
|---|
