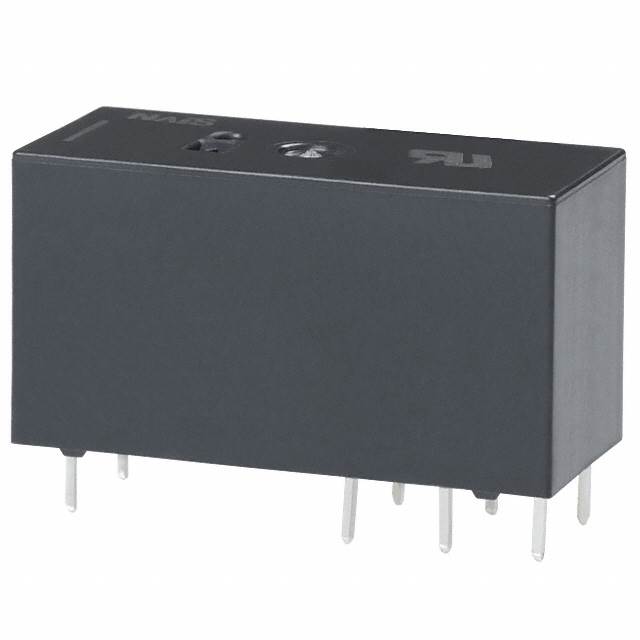

| Part Number | ALZ12B24 |
|---|
| Manufacturer | Panasonic Electric Works |
|---|
| Description | RELAY GEN PURPOSE SPDT 16A 24V |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Relays |
|---|
| Series | ALZ |
|---|
| Family | Power Relays, Over 2 Amps |
|---|
| Other Related Documents |
Standards Chart
How to Read Date Codes
|
|---|
| Standard Package | 20 |
|---|
| Packaging | Tube |
|---|
| Relay Type | General Purpose |
|---|
| Coil Type | Non Latching |
|---|
| Coil Current | 16.7mA |
|---|
| Coil Voltage | 24VDC |
|---|
| Contact Form | SPDT (1 Form C) |
|---|
| Contact Rating (Current) | 16A |
|---|
| Switching Voltage | 440VAC - Max |
|---|
| Turn On Voltage (Max) | 16.8 VDC |
|---|
| Turn Off Voltage (Min) | 2.4 VDC |
|---|
| Operate Time | 15ms |
|---|
| Release Time | 5ms |
|---|
| Features | Insulation - Class B, Sealed - Fully |
|---|
| Mounting Type | Through Hole |
|---|
| Termination Style | PC Pin |
|---|
| Contact Material | Silver Tin Oxide (AgSnO) |
|---|
| Coil Power | 400 mW |
|---|
| Coil Resistance | 1.44 kOhms |
|---|
| Operating Temperature | -40°C ~ 85°C |
|---|
| Online Catalog | ALZ Series |
|---|
| Other Names | 255-1445 |
|---|
