| Part Number | AGN20012 |
|---|
| Manufacturer | Panasonic Electric Works |
|---|
| Description | RELAY TELECOM DPDT 1A 12V |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Relays |
|---|
| Series | AGN |
|---|
| Family | Signal Relays, Up to 2 Amps |
|---|
| Other Related Documents |
Relay Technical Info
Standards Chart
How to Read Date Codes
|
|---|
| Product Training Modules |
Signal Relays
|
|---|
| Featured Product |
Space-Saving, High-Reliability Signal Relays
|
|---|
| EDA / CAD Models |
Download from Accelerated Designs |
|---|
| Standard Package | 50 |
|---|
| Packaging | Tube |
|---|
| Relay Type | Telecom |
|---|
| Coil Type | Non Latching |
|---|
| Coil Current | 11.7mA |
|---|
| Coil Voltage | 12VDC |
|---|

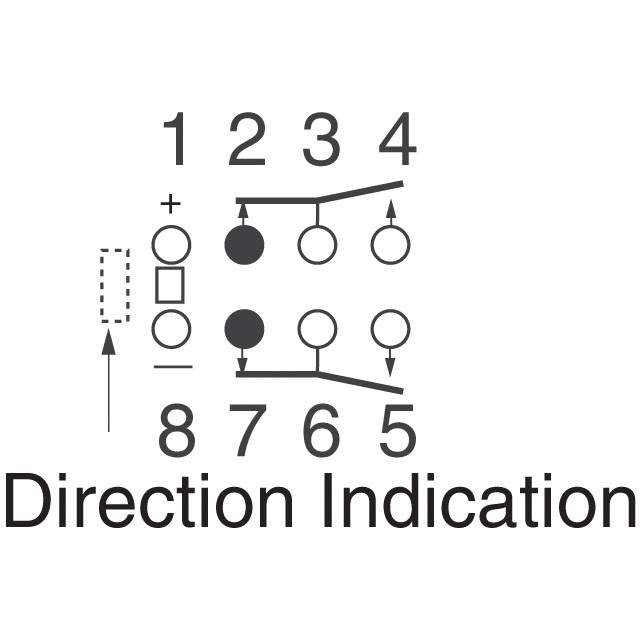

| Contact Form | DPDT (2 Form C) |
|---|
| Contact Rating (Current) | 1A |
|---|
| Switching Voltage | 125VAC, 110VDC - Max |
|---|
| Turn On Voltage (Max) | 9 VDC |
|---|
| Turn Off Voltage (Min) | 1.2 VDC |
|---|
| Operate Time | 4ms |
|---|
| Release Time | 4ms |
|---|
| Features | - |
|---|
| Mounting Type | Through Hole |
|---|
| Termination Style | PC Pin |
|---|
| Contact Material | Silver Palladium (AgPd), Gold (Au) |
|---|
| Coil Power | 140 mW |
|---|
| Coil Resistance | 1.03 kOhms |
|---|
| Operating Temperature | -40°C ~ 85°C |
|---|
| Online Catalog | AGN Series |
|---|
| Other Names | 255-1231255-1231-5255-1231-ND |
|---|
