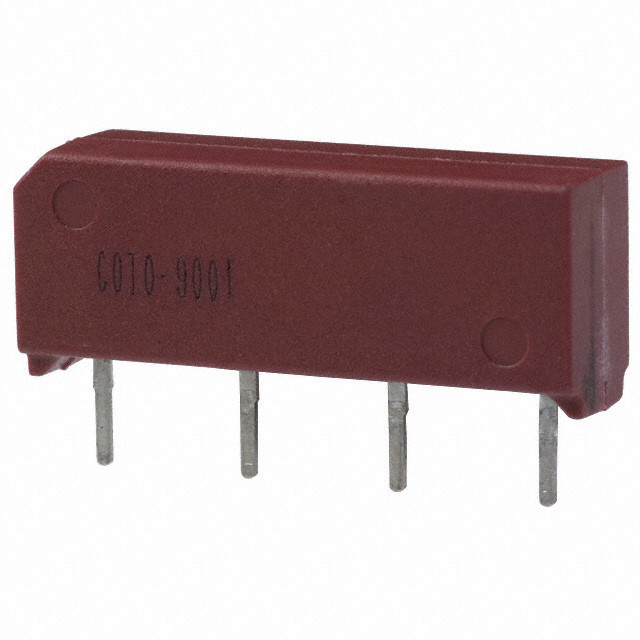

| Part Number | 9001-05-00 |
|---|
| Manufacturer | Coto Technology |
|---|
| Description | RELAY REED SPST 500MA 5V |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Relays |
|---|
| Series | 9000 |
|---|
| Family | Signal Relays, Up to 2 Amps |
|---|
| Mfg Application Notes |
Reed Relays Technical, Appl Into
|
|---|
| Standard Package | 25 |
|---|
| Packaging | Tube |
|---|
| Relay Type | Reed |
|---|
| Coil Type | Non Latching |
|---|
| Coil Current | 10mA |
|---|
| Coil Voltage | 5VDC |
|---|
| Contact Form | SPST-NO (1 Form A) |
|---|
| Contact Rating (Current) | 500mA |
|---|
| Switching Voltage | 200VAC, 200VDC - Max |
|---|
| Turn On Voltage (Max) | 3.75 VDC |
|---|
| Turn Off Voltage (Min) | 0.4 VDC |
|---|
| Operate Time | 0.35ms |
|---|
| Release Time | 0.1ms |
|---|
| Features | - |
|---|
| Mounting Type | Through Hole |
|---|
| Termination Style | PC Pin |
|---|
| Contact Material | - |
|---|
| Coil Power | - |
|---|
| Coil Resistance | 500 Ohms |
|---|
| Operating Temperature | -20°C ~ 85°C |
|---|
| Online Catalog | 9000 Series |
|---|
| Other Names | 306-10559001-05-09001-5-090010500 |
|---|
