| Part Number | JW2SN-DC12V |
|---|
| Manufacturer | Panasonic Electric Works |
|---|

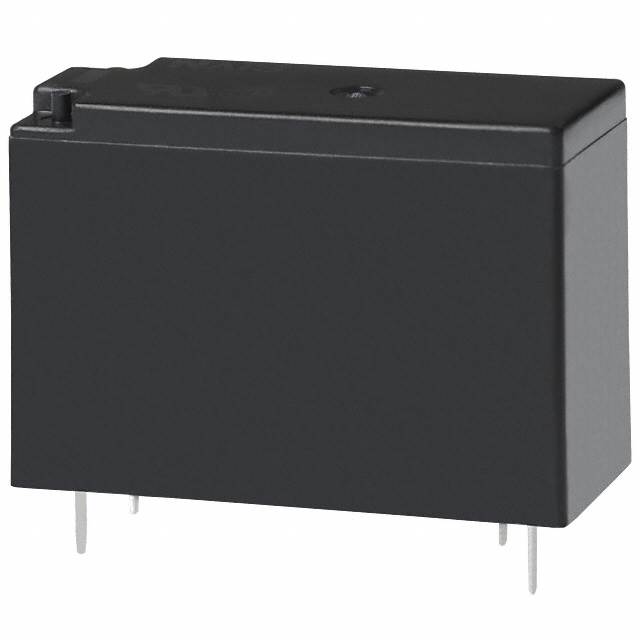

| Description | RELAY GEN PURPOSE DPDT 5A 12V |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Relays |
|---|
| Series | JW |
|---|
| Family | Power Relays, Over 2 Amps |
|---|
| Other Related Documents |
General Appl Guidelines
Standards Chart
How to Read Date Codes
|
|---|
| EDA / CAD Models |
Download from Accelerated Designs |
|---|
| Standard Package | 100 |
|---|
| Packaging | Tray |
|---|
| Relay Type | General Purpose |
|---|
| Coil Type | Non Latching |
|---|
| Coil Current | 44mA |
|---|
| Coil Voltage | 12VDC |
|---|
| Contact Form | DPDT (2 Form C) |
|---|
| Contact Rating (Current) | 5A |
|---|
| Switching Voltage | 250VAC, 30VDC - Max |
|---|
| Turn On Voltage (Max) | 8.4 VDC |
|---|
| Turn Off Voltage (Min) | 1.2 VDC |
|---|
| Operate Time | 15ms |
|---|
| Release Time | 5ms |
|---|
| Features | Sealed - Fully |
|---|
| Mounting Type | Through Hole |
|---|
| Termination Style | PC Pin |
|---|
| Contact Material | Silver Nickel (AgNi) |
|---|
| Coil Power | 530 mW |
|---|
| Coil Resistance | 270 Ohms |
|---|
| Operating Temperature | -40°C ~ 60°C |
|---|
| Online Catalog | JW Series |
|---|
| Associated Product | 255-1821-ND - SOCKET PCB FOR JW2 RELAYS |
|---|
| Other Names | 255-1117JW2EN-DC12VJW2SNDC12V |
|---|
