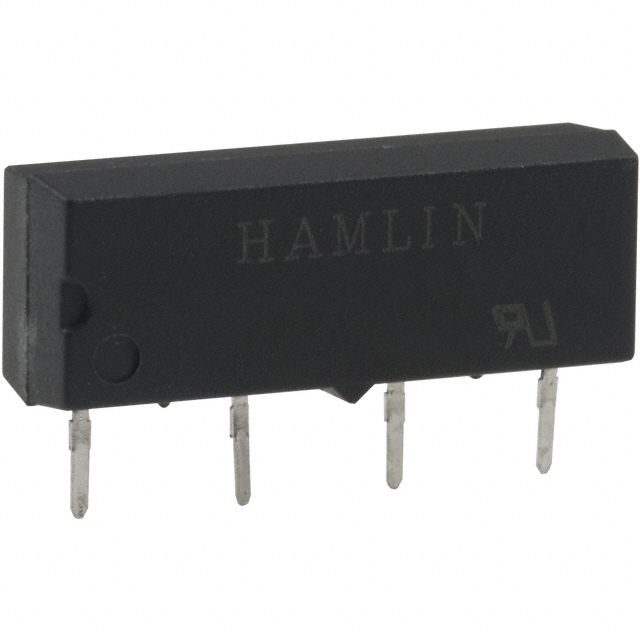

| Part Number | HE3621A1210 |
|---|
| Manufacturer | Littelfuse Inc. |
|---|
| Description | RELAY REED SPST 500MA 12V |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Relays |
|---|
| Series | HE3600 |
|---|
| Family | Signal Relays, Up to 2 Amps |
|---|
| Other Related Documents |
Handling Of Reed Sensors, Relays, Switches App Note
|
|---|
| Featured Product |
Littelfuse - Relays Miniature SIL HE3600 Series
|
|---|
| Standard Package | 25 |
|---|
| Packaging | Bulk |
|---|
| Relay Type | Reed |
|---|
| Coil Type | Non Latching |
|---|
| Coil Current | 12mA |
|---|
| Coil Voltage | 12VDC |
|---|
| Contact Form | SPST-NO (1 Form A) |
|---|
| Contact Rating (Current) | 500mA |
|---|
| Switching Voltage | 200VDC - Max |
|---|
| Turn On Voltage (Max) | 8 VDC |
|---|
| Turn Off Voltage (Min) | 1 VDC |
|---|
| Operate Time | 1ms |
|---|
| Release Time | 1ms |
|---|
| Features | Diode |
|---|
| Mounting Type | Through Hole |
|---|
| Termination Style | PC Pin |
|---|
| Contact Material | - |
|---|
| Coil Power | - |
|---|
| Coil Resistance | 1 kOhms |
|---|
| Operating Temperature | -40°C ~ 85°C |
|---|
| Online Catalog | HE3600 Series |
|---|
| Other Names | HE209 |
|---|
