| Part Number | V23079F1101B301 |
|---|
| Manufacturer | TE Connectivity Potter & Brumfield Relays |
|---|

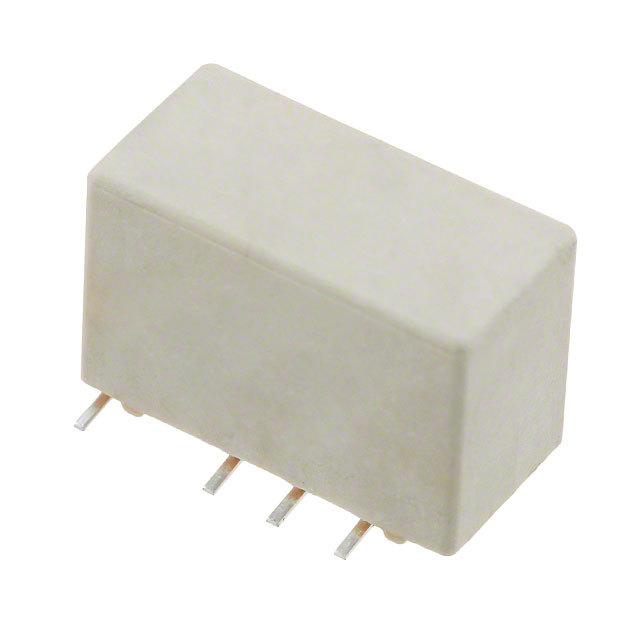

| Description | RELAY GENERAL PURPOSE DPDT 2A 5V |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Relays |
|---|
| Series | V23079, AXICOM |
|---|
| Family | Signal Relays, Up to 2 Amps |
|---|
| Featured Product |
Plug-In Relays
P2 Series Relays
|
|---|
| PCN Design/Specification |
y-13937yy-y UL Clarification 20/Feb/2014
|
|---|
| Standard Package | 1 |
|---|
| Packaging | Digi-Reel? |
|---|
| Relay Type | General Purpose |
|---|
| Coil Type | Latching, Single Coil |
|---|
| Coil Current | 14mA |
|---|
| Coil Voltage | 5VDC |
|---|
| Contact Form | DPDT (2 Form C) |
|---|
| Contact Rating (Current) | 2A |
|---|
| Switching Voltage | 250VAC, 220VDC - Max |
|---|
| Turn On Voltage (Max) | 3.75 VDC |
|---|
| Turn Off Voltage (Min) | - |
|---|
| Operate Time | 4ms |
|---|
| Release Time | 4ms |
|---|
| Features | - |
|---|
| Mounting Type | Surface Mount |
|---|
| Termination Style | Gull Wing |
|---|
| Contact Material | Silver Nickel (AgNi), Gold (Au) |
|---|
| Coil Power | 70 mW |
|---|
| Coil Resistance | 357 Ohms |
|---|
| Operating Temperature | -40°C ~ 85°C |
|---|
| Online Catalog | V23079, AXICOM Series |
|---|
| Other Names | PB1079DKR |
|---|
