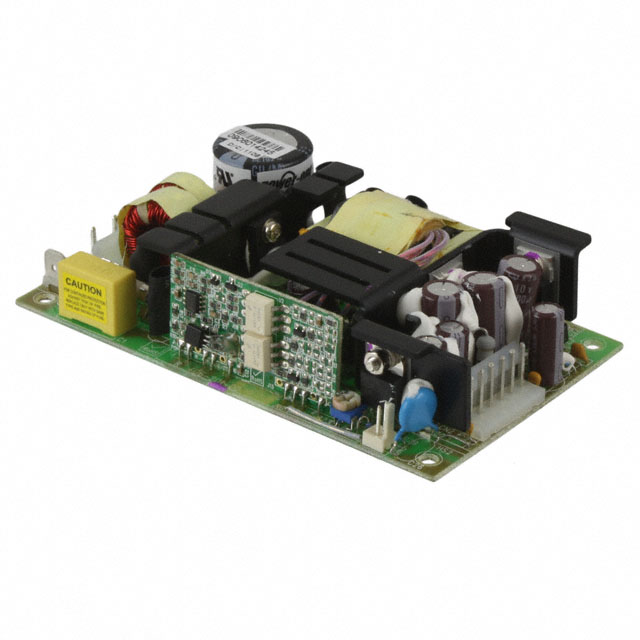

| Part Number | BLP55-3300G |
|---|
| Manufacturer | Bel Power Solutions |
|---|
| Description | AC/DC CONVERTER 3.3V 5V 12V 55W |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Power Supplies - External/Internal (Off-Board) |
|---|
| Series | BLP55 |
|---|
| Family | AC DC Converters |
|---|
| PCN Obsolescence/ EOL |
BLP55 Models 25/Mar/2013
|
|---|
| Standard Package | 50 |
|---|
| Type | Open Frame |
|---|
| Number of Outputs | 3 |
|---|
| Voltage - Input | 85 ~ 264 VAC |
|---|
| Voltage - Output 1 | 3.3V |
|---|
| Voltage - Output 2 | 5V |
|---|
| Voltage - Output 3 | 12V |
|---|
| Voltage - Output 4 | - |
|---|
| Current - Output (Max) | 7A, 4A, 1A |
|---|
| Power (Watts) | 55W |
|---|
| Applications | ITE (Commercial) |
|---|
| Voltage - Isolation | 4.242kV (4242V) |
|---|
| Efficiency | 70% |
|---|
| Operating Temperature | 0°C ~ 70°C (With Derating) |
|---|
| Features | Adjustable Output, Remote Sense, Universal Input |
|---|
| Mounting Type | Chassis Mount |
|---|
| Size / Dimension | 5.00" L x 3.00" W x 1.23" H (127.0mm x 76.2mm x 31.2mm) |
|---|
| Minimum Load Required | - |
|---|
| Approvals | CB, CE |
|---|
| Power (Watts) - Max | 55W |
|---|
| Associated Product | WM2000-ND - CONN HOUS 2POS .100 W/RAMP/RIBWM2123-ND - CONN HOUSING 3POS .156 W/RAMPWM2126-ND - CONN HOUSING 6POS .156 W/RAMP |
|---|
| Other Names | 179-2268 |
|---|
