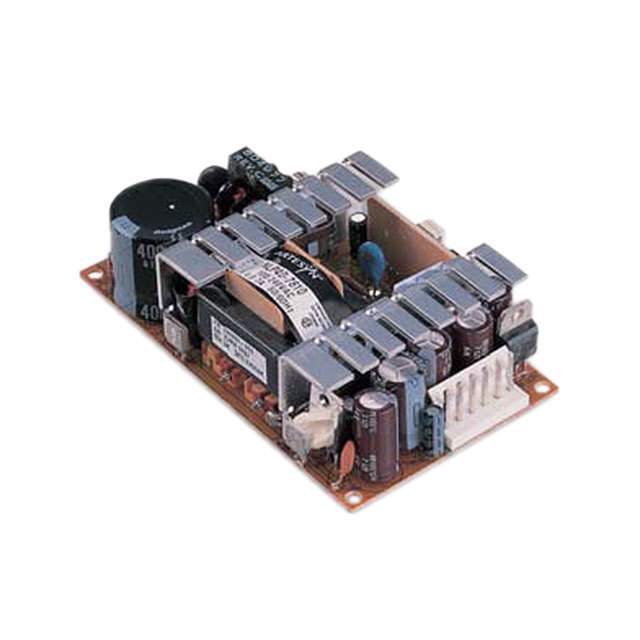

| Part Number | NLP40-7617J |
|---|
| Manufacturer | Artesyn Embedded Technologies |
|---|
| Description | AC/DC CONVERTER 48V 40W |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Power Supplies - External/Internal (Off-Board) |
|---|
| Series | NLP40 |
|---|
| Family | AC DC Converters |
|---|
| Standard Package | 50 |
|---|
| Type | Open Frame |
|---|
| Number of Outputs | 1 |
|---|
| Voltage - Input | 90 ~ 264 VAC |
|---|
| Voltage - Output 1 | 48V |
|---|
| Voltage - Output 2 | - |
|---|
| Voltage - Output 3 | - |
|---|
| Voltage - Output 4 | - |
|---|
| Current - Output (Max) | 800mA |
|---|
| Power (Watts) | 40W (50W Forced Air) |
|---|
| Applications | ITE (Commercial) |
|---|
| Voltage - Isolation | 3kV (3000V) |
|---|
| Efficiency | 75% |
|---|
| Operating Temperature | 0°C ~ 70°C |
|---|
| Features | DC Input Capable, Universal Input |
|---|
| Mounting Type | Chassis Mount |
|---|
| Size / Dimension | 4.25" L x 2.50" W x 1.15" H (108.0mm x 63.5mm x 29.2mm) |
|---|
| Minimum Load Required | No |
|---|
| Approvals | CE, CSA, VDE |
|---|
| Power (Watts) - Max | 40W (50W Forced Air) |
|---|
