| Part Number | MSM7524 |
|---|
| Manufacturer | Iccnexergy |
|---|

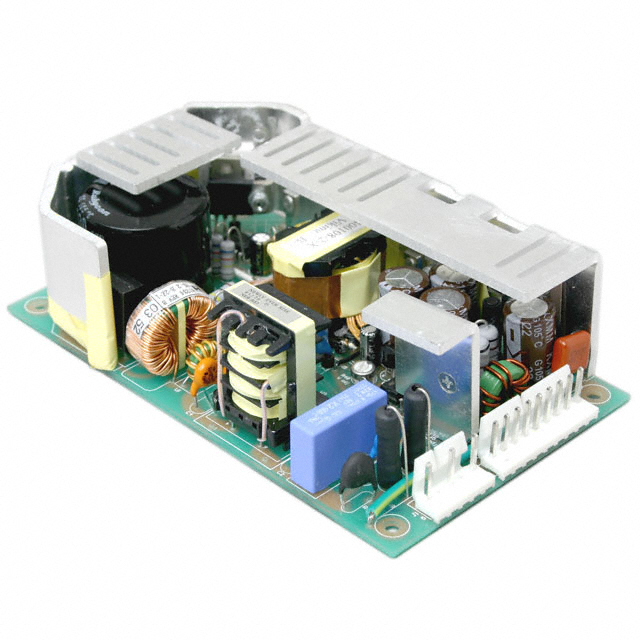

| Description | AC/DC CONVERTER 24V 75W |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Power Supplies - External/Internal (Off-Board) |
|---|
| Series | MSM75 |
|---|
| Family | AC DC Converters |
|---|
| PCN Obsolescence/ EOL |
Multiple Devices 18/Nov/2014
|
|---|
| Standard Package | 1 |
|---|
| Type | Open Frame |
|---|
| Number of Outputs | 1 |
|---|
| Voltage - Input | 90 ~ 264 VAC |
|---|
| Voltage - Output 1 | 24V |
|---|
| Voltage - Output 2 | - |
|---|
| Voltage - Output 3 | - |
|---|
| Voltage - Output 4 | - |
|---|
| Current - Output (Max) | 2.7A |
|---|
| Power (Watts) | 75W |
|---|
| Applications | Medical |
|---|
| Voltage - Isolation | - |
|---|
| Efficiency | 80% |
|---|
| Operating Temperature | 0°C ~ 50°C |
|---|
| Features | Universal Input |
|---|
| Mounting Type | Chassis Mount |
|---|
| Size / Dimension | 5.75" L x 3.40" W x 1.66" H (146.1mm x 86.4mm x 42.2mm) |
|---|
| Minimum Load Required | - |
|---|
| Approvals | CE |
|---|
| Power (Watts) - Max | 75W |
|---|
| Other Names | EPS348 |
|---|
