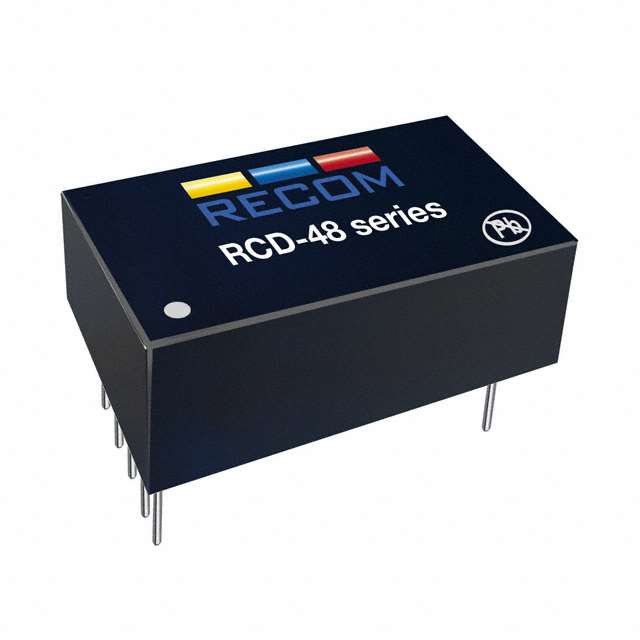

| Part Number | RCD-48-0.35 |
|---|
| Manufacturer | Recom Power |
|---|
| Description | LED SUPPLY CC BUCK 2-56V 350MA |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Power Supplies - Board Mount |
|---|
| Series | LIGHTLINE RCD-48 |
|---|
| Family | LED Supplies |
|---|
| Design Resources |
Lighting Product Selector
|
|---|
| Standard Package | 29 |
|---|
| Type | Constant Current |
|---|
| Topology | Buck |
|---|
| Number of Outputs | 1 |
|---|
| Voltage - Input (Min) | 9V |
|---|
| Voltage - Input (Max) | 60V |
|---|
| Voltage - Output | 2 ~ 56 V |
|---|
| Current - Output (Max) | 350mA |
|---|
| Power (Watts) | 20W |
|---|
| Dimming | Analog, PWM |
|---|
| Features | Remote On/Off, SCP |
|---|
| Operating Temperature | -40°C ~ 80°C |
|---|
| Efficiency | 96% |
|---|
| Mounting Type | Through Hole |
|---|
| Package / Case | 7-DIP Module |
|---|
| Size / Dimension | 1.28" L x 0.64" W x 0.44" H (32.6mm x 16.5mm x 11.1mm) |
|---|
| Packaging | Tube |
|---|
| Approvals | EN, UL |
|---|
| Weight | 0.029 lb (13.15g) |
|---|
| Online Catalog | LIGHTLINE RCD-48 Series |
|---|
| Other Names | 80099219945-1640-5RCD480.35RCD48035 |
|---|
