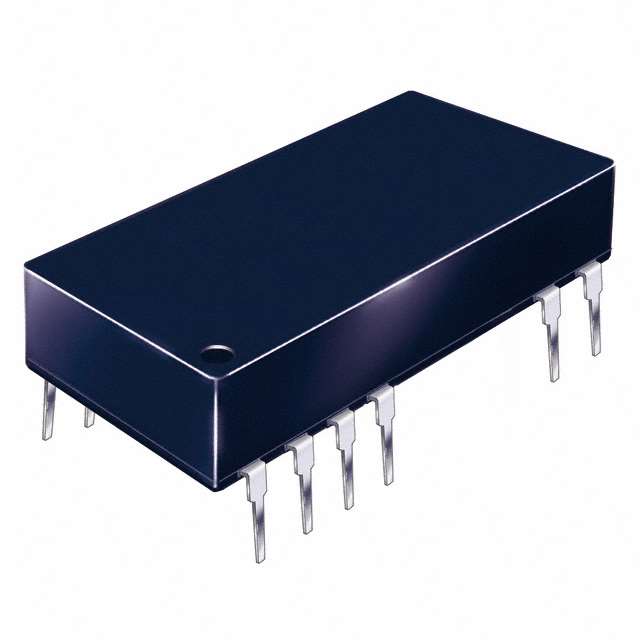

| Part Number | RCD-24-0.35 |
|---|
| Manufacturer | Recom Power |
|---|
| Description | LED SUPPLY CC BUCK 2-35V 350MA |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Power Supplies - Board Mount |
|---|
| Series | LIGHTLINE RCD-24 |
|---|
| Family | LED Supplies |
|---|
| Product Training Modules |
LED Driver Modules
|
|---|
| Design Resources |
Lighting Product Selector
|
|---|
| Featured Product |
RCD Series LED Drivers
|
|---|
| Standard Package | 39 |
|---|
| Type | Constant Current |
|---|
| Topology | Buck |
|---|
| Number of Outputs | 1 |
|---|
| Voltage - Input (Min) | 4.5V |
|---|
| Voltage - Input (Max) | 36V |
|---|
| Voltage - Output | 2 ~ 35 V |
|---|
| Current - Output (Max) | 350mA |
|---|
| Power (Watts) | 12W |
|---|
| Dimming | Analog, PWM |
|---|
| Features | Remote On/Off, SCP |
|---|
| Operating Temperature | -40°C ~ 85°C |
|---|
| Efficiency | 96% |
|---|
| Mounting Type | Through Hole |
|---|
| Package / Case | 6-DIP Module |
|---|
| Size / Dimension | 0.87" L x 0.49" W x 0.33" H (22.1mm x 12.6mm x 8.5mm) |
|---|
| Packaging | Tube |
|---|
| Approvals | cULus |
|---|
| Weight | 0.01 lb (4.54g) |
|---|
| Online Catalog | LIGHTLINE RCD-24 Series |
|---|
| Other Names | 80099185945-1117RCD240.35RCD24035 |
|---|
