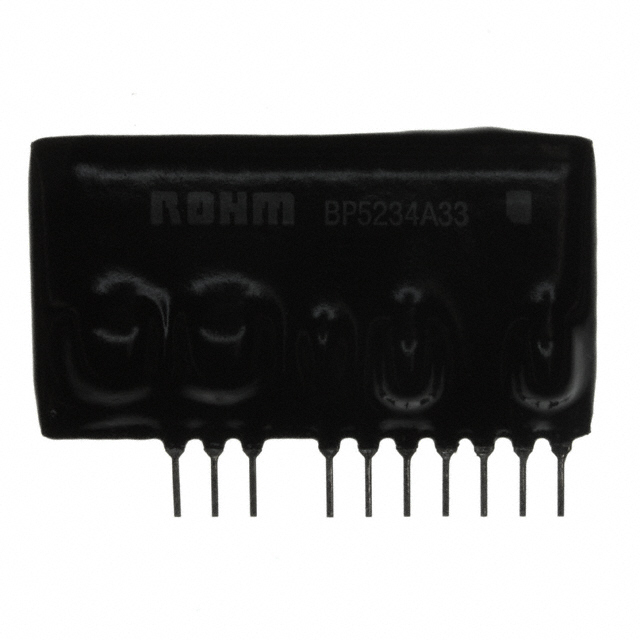

| Part Number | BP5234A33 |
|---|
| Manufacturer | Rohm Semiconductor |
|---|
| Description | IC BUCK 3.3V 4A 10SIP |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Power Supplies - Board Mount |
|---|
| Series | - |
|---|
| Family | DC DC Converters |
|---|
| Standard Package | 120 |
|---|
| Packaging | Tray |
|---|
| Type | Non-Isolated PoL Module |
|---|
| Number of Outputs | 1 |
|---|
| Voltage - Input (Min) | 4.5V |
|---|
| Voltage - Input (Max) | 5.5V |
|---|
| Voltage - Output 1 | 2.5V |
|---|
| Voltage - Output 2 | - |
|---|
| Voltage - Output 3 | - |
|---|
| Current - Output (Max) | 2A |
|---|
| Power (Watts) - Manufacture Series | 5W |
|---|
| Voltage - Isolation | - |
|---|
| Applications | ITE (Commercial) |
|---|
| Features | Remote On/Off, SCP |
|---|
| Mounting Type | Through Hole |
|---|
| Package / Case | 10-SIP Module |
|---|
| Size / Dimension | 1.52" L x 0.49" W x 0.93" H (38.5mm x 12.5mm x 23.5mm) |
|---|
| Operating Temperature | -20°C ~ 55°C |
|---|
| Efficiency | 93% |
|---|
| Power (Watts) - Max | 5W |
|---|
| Online Catalog | BP5234A33 |
|---|
