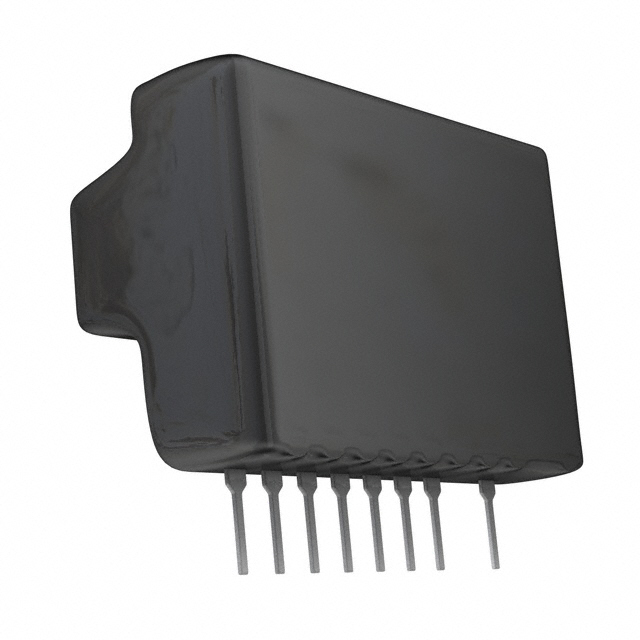

| Part Number | BP5220A |
|---|
| Manufacturer | Rohm Semiconductor |
|---|
| Description | CONVERTER DC/DC 5V OUT 1A 9-SIP |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Power Supplies - Board Mount |
|---|
| Series | BP5220 |
|---|
| Family | DC DC Converters |
|---|
| Standard Package | 150 |
|---|
| Packaging | Bulk |
|---|
| Type | Non-Isolated PoL Module |
|---|
| Number of Outputs | 1 |
|---|
| Voltage - Input (Min) | 8V |
|---|
| Voltage - Input (Max) | 38V |
|---|
| Voltage - Output 1 | 5V |
|---|
| Voltage - Output 2 | - |
|---|
| Voltage - Output 3 | - |
|---|
| Current - Output (Max) | 1A |
|---|
| Power (Watts) - Manufacture Series | 5W |
|---|
| Voltage - Isolation | - |
|---|
| Applications | ITE (Commercial) |
|---|
| Features | - |
|---|
| Mounting Type | Through Hole |
|---|
| Package / Case | 9-SIP Module, 8 Leads |
|---|
| Size / Dimension | 1.10" L x 0.47" W x 0.77" H (28.0mm x 12.0mm x 19.5mm) |
|---|
| Operating Temperature | -20°C ~ 70°C |
|---|
| Efficiency | 85% |
|---|
| Power (Watts) - Max | 5W |
|---|
| Online Catalog | BP5220 and BP5222 Series |
|---|
