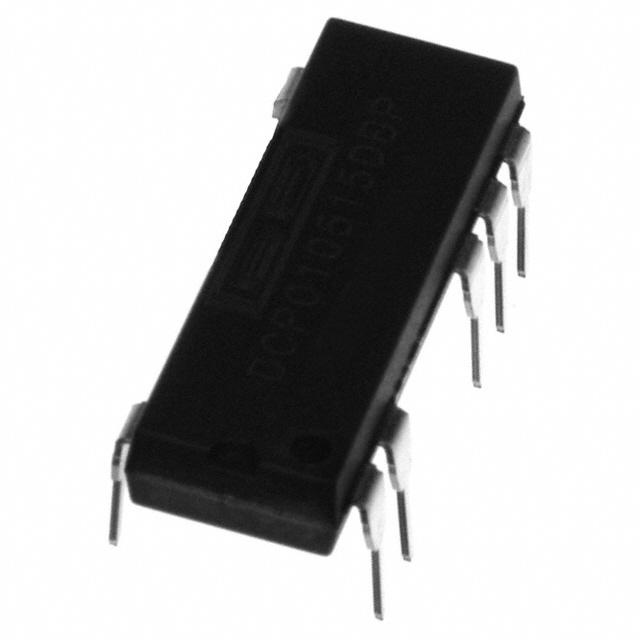

| Part Number | DCP021212DP |
|---|
| Manufacturer | Texas Instruments |
|---|
| Description | IC REG ISOLATED +/-12V 83MA 7DIP |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Power Supplies - Board Mount |
|---|
| Series | DCP02 |
|---|
| Family | DC DC Converters |
|---|
| Manufacturer Product Page |
DCP021212DP Specifications
|
|---|
| EDA / CAD Models |
Download from Accelerated Designs |
|---|
| Standard Package | 25 |
|---|
| Packaging | Tube |
|---|
| Type | Isolated Module |
|---|
| Number of Outputs | 2 |
|---|
| Voltage - Input (Min) | 10.8V |
|---|
| Voltage - Input (Max) | 13.2V |
|---|
| Voltage - Output 1 | 12V |
|---|
| Voltage - Output 2 | -12V |
|---|
| Voltage - Output 3 | - |
|---|
| Current - Output (Max) | 83mA, 83mA |
|---|
| Power (Watts) - Manufacture Series | 2W |
|---|
| Voltage - Isolation | 1kV (1000V) |
|---|
| Applications | ITE (Commercial) |
|---|
| Features | OTP |
|---|
| Mounting Type | Through Hole |
|---|
| Package / Case | 14-DIP (0.300", 7.62mm), 7 Leads |
|---|
| Size / Dimension | 0.78" L x 0.33" W x 0.21" H (19.7mm x 8.3mm x 5.3mm) |
|---|
| Operating Temperature | -40°C ~ 85°C |
|---|
| Efficiency | 88% |
|---|
| Power (Watts) - Max | 384mW |
|---|
| Online Catalog | DCP02 Series |
|---|
