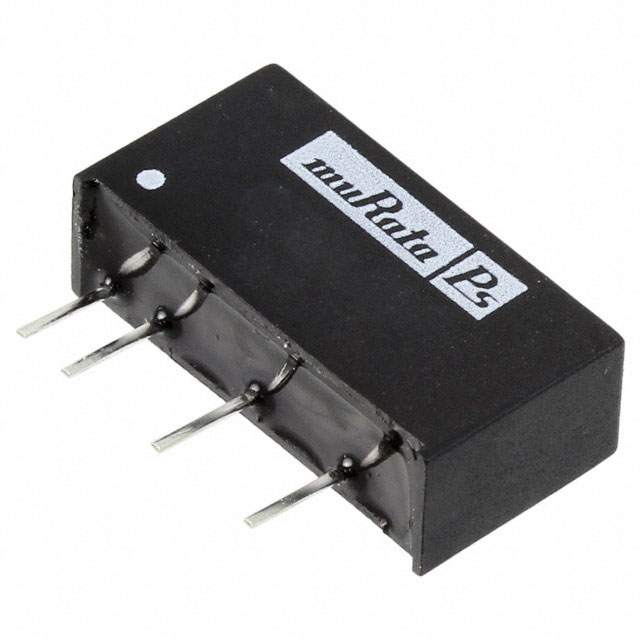

| Part Number | CMR100C |
|---|
| Manufacturer | Murata Power Solutions Inc. |
|---|
| Description | DC/DC CONVERTER 5V 0.75W |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Power Supplies - Board Mount |
|---|
| Series | CMR |
|---|
| Family | DC DC Converters |
|---|
| Featured Product |
CME and CMR Series DCDC Converters
|
|---|
| Standard Package | 25 |
|---|
| Packaging | Tube |
|---|
| Type | Isolated Module |
|---|
| Number of Outputs | 1 |
|---|
| Voltage - Input (Min) | 4.5V |
|---|
| Voltage - Input (Max) | 5.5V |
|---|
| Voltage - Output 1 | 5V |
|---|
| Voltage - Output 2 | - |
|---|
| Voltage - Output 3 | - |
|---|
| Current - Output (Max) | 150mA |
|---|
| Power (Watts) - Manufacture Series | 750mW |
|---|
| Voltage - Isolation | 1kV (1000V) |
|---|
| Applications | ITE (Commercial) |
|---|
| Features | - |
|---|
| Mounting Type | Through Hole |
|---|
| Package / Case | 7-SIP Module (4 Leads) |
|---|
| Size / Dimension | 0.77" L x 0.24" W x 0.39" H (19.5mm x 6.0mm x 10.0mm) |
|---|
| Operating Temperature | -40°C ~ 85°C |
|---|
| Efficiency | 69% |
|---|
| Power (Watts) - Max | 750mW |
|---|
| Online Catalog | CMR Series |
|---|
| Other Names | 288-2896-5288-2896-5-ND811-2896-5 |
|---|
