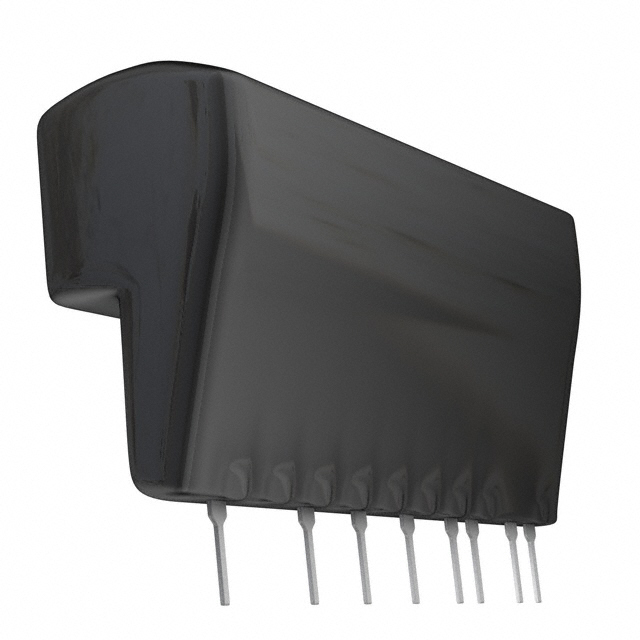

| Part Number | BP5081A15 |
|---|
| Manufacturer | Rohm Semiconductor |
|---|
| Description | IC AC/DC CONVERTER DUAL SIP14 |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Power Supplies - Board Mount |
|---|
| Series | BP5081 |
|---|
| Family | AC DC Converters |
|---|
| Standard Package | 100 |
|---|
| Number of Outputs | 2 |
|---|
| Voltage - Input | 80 ~ 120 VAC |
|---|
| Voltage - Output 1 | 15V |
|---|
| Voltage - Output 2 | 5V |
|---|
| Voltage - Output 3 | - |
|---|
| Voltage - Output 4 | - |
|---|
| Current - Output (Max) | 80mA, 350mA |
|---|
| Power (Watts) | 3W |
|---|
| Power Supply Type | Switching (Closed Frame) |
|---|
| Applications | ITE (Commercial) |
|---|
| Features | - |
|---|
| Operating Temperature | -25°C ~ 80°C |
|---|
| Efficiency | - |
|---|
| Mounting Type | Through Hole |
|---|
| Size / Dimension | 1.59" L x 0.49" W x 0.85" H (40.5mm x 12.4mm x 21.5mm) |
|---|
| Power (Watts) - Max | 3W |
|---|
| Line Regulation | 100mV |
|---|
| Load Regulation | 50mV |
|---|
| Approvals | - |
|---|
| Weight | - |
|---|
| Online Catalog | BP50xx Series |
|---|
