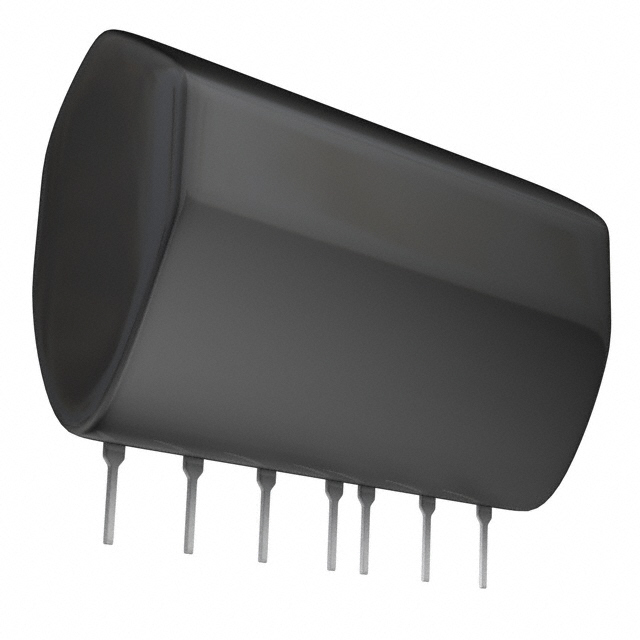

| Part Number | BP5068-15 |
|---|
| Manufacturer | Rohm Semiconductor |
|---|
| Description | AC/DC CONVERTER -15V 800MA 12W |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Power Supplies - Board Mount |
|---|
| Series | BP5068 |
|---|
| Family | AC DC Converters |
|---|
| Standard Package | 96 |
|---|
| Number of Outputs | 1 |
|---|
| Voltage - Input | 85 ~ 115 VAC |
|---|
| Voltage - Output 1 | -15V |
|---|
| Voltage - Output 2 | - |
|---|
| Voltage - Output 3 | - |
|---|
| Voltage - Output 4 | - |
|---|
| Current - Output (Max) | 800mA |
|---|
| Power (Watts) | 12W |
|---|
| Power Supply Type | Switching (Closed Frame) |
|---|
| Applications | ITE (Commercial) |
|---|
| Features | - |
|---|
| Operating Temperature | -20°C ~ 80°C |
|---|
| Efficiency | 85% |
|---|
| Mounting Type | Through Hole |
|---|
| Size / Dimension | 1.36" L x 0.44" W x 0.85" H (34.5mm x 11.3mm x 21.5mm) |
|---|
| Power (Watts) - Max | 12W |
|---|
| Line Regulation | 200mV |
|---|
| Load Regulation | 500mV |
|---|
| Approvals | - |
|---|
| Weight | - |
|---|
| Other Names | BP506815 |
|---|
