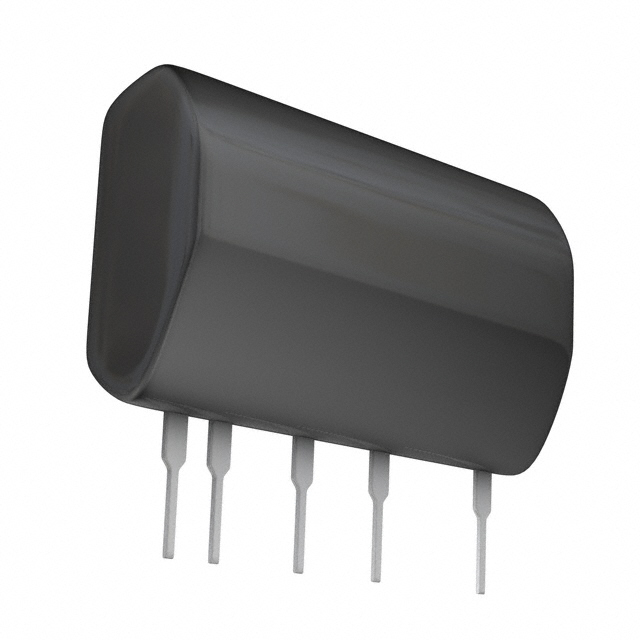

| Part Number | BP5065C5 |
|---|---|
| Manufacturer | Rohm Semiconductor |
| Description | IC CONV AC/DC -5V 100MA SIP9 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 10,000 |
| Datasheet | BP5065C5 |
| Minimum Order: $100 USD | |
| Request for Quote to us through Email or Phone call on quanitities greater than those displayed or for price adjustment. | |
BP5065C5
-
- USD 3.17
Product Details
| Part Number | BP5065C5 |
|---|---|
| Manufacturer | Rohm Semiconductor |
| Description | IC CONV AC/DC -5V 100MA SIP9 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Category | Power Supplies - Board Mount |
| Series | BP5065 |
| Family | AC DC Converters |
| Standard Package | 200 |
| Number of Outputs | 1 |
| Voltage - Input | 80 ~ 120 VAC |
| Voltage - Output 1 | -5V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 100mA |
| Power (Watts) | 1W |
| Power Supply Type | Switching (Closed Frame) |
| Applications | ITE (Commercial) |
| Features | - |
| Operating Temperature | -20°C ~ 80°C |
| Efficiency | 50% |
| Mounting Type | Through Hole |
| Size / Dimension | 1.03" L x 0.28" W x 0.60" H (26.1mm x 7.2mm x 15.2mm) |
| Power (Watts) - Max | 1W |
| Line Regulation | 50mV |
| Load Regulation | 70mV |
| Approvals | - |
| Weight | - |
