| Part Number | BP5061-5 |
|---|---|
| Manufacturer | Rohm Semiconductor |

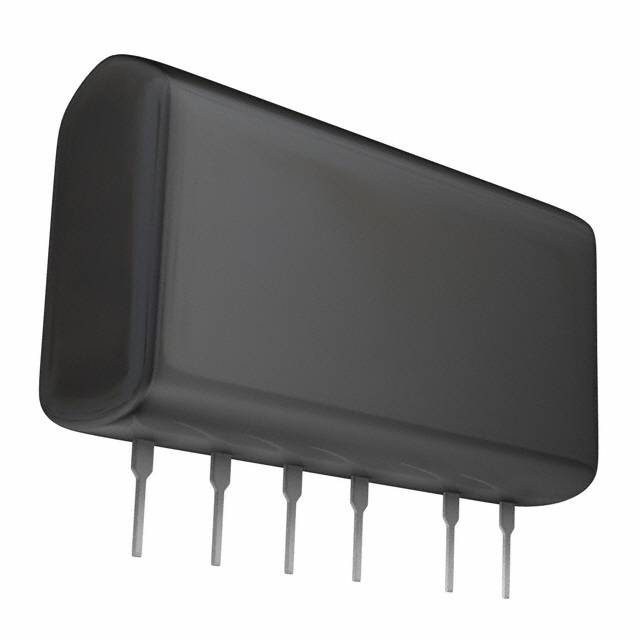

| Description | IC AC/DC CONV -5V 350MA SIP12 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 10,000 |
| Datasheet | BP5061-5 |
| Minimum Order: $100 USD | |
| Request for Quote to us through Email or Phone call on quanitities greater than those displayed or for price adjustment. | |
BP5061-5
-
- USD 4.49
Product Details
| Part Number | BP5061-5 |
|---|---|
| Manufacturer | Rohm Semiconductor |
| Description | IC AC/DC CONV -5V 350MA SIP12 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Category | Power Supplies - Board Mount |
| Series | BP5061 |
| Family | AC DC Converters |
| Standard Package | 100 |
| Number of Outputs | 1 |
| Voltage - Input | 80 ~ 120 VAC |
| Voltage - Output 1 | -5V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 350mA |
| Power (Watts) | 2W |
| Power Supply Type | Switching (Closed Frame) |
| Applications | ITE (Commercial) |
| Features | - |
| Operating Temperature | -25°C ~ 80°C |
| Efficiency | 62.1% |
| Mounting Type | Through Hole |
| Size / Dimension | 1.38" L x 0.36" W x 0.77" H (35.0mm x 9.1mm x 19.5mm) |
| Power (Watts) - Max | 2W |
| Line Regulation | 40mV |
| Load Regulation | 50mV |
| Approvals | - |
| Weight | - |
