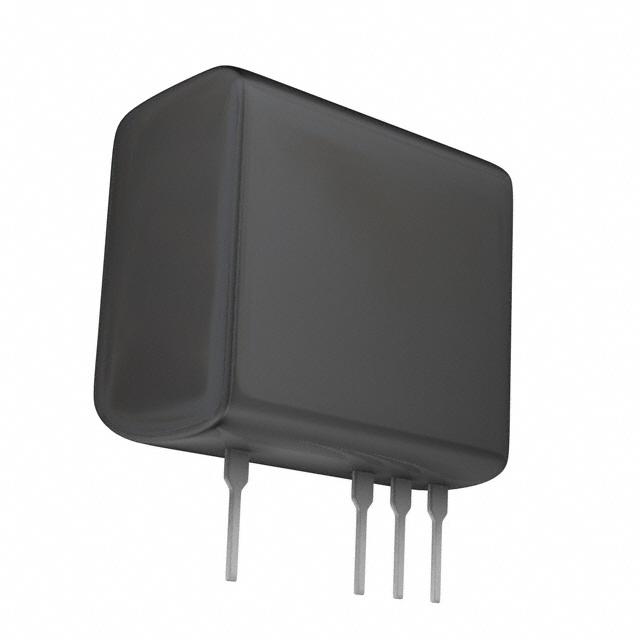

| Part Number | BP5038A1 |
|---|
| Manufacturer | Rohm Semiconductor |
|---|
| Description | IC CONV AC/DC 5V 30MA SIP6 |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Power Supplies - Board Mount |
|---|
| Series | BP5038 |
|---|
| Family | AC DC Converters |
|---|
| Standard Package | 384 |
|---|
| Number of Outputs | 1 |
|---|
| Voltage - Input | 80 ~ 120 VAC |
|---|
| Voltage - Output 1 | 5V |
|---|
| Voltage - Output 2 | - |
|---|
| Voltage - Output 3 | - |
|---|
| Voltage - Output 4 | - |
|---|
| Current - Output (Max) | 30mA |
|---|
| Power (Watts) | 150mW |
|---|
| Power Supply Type | Switching (Closed Frame) |
|---|
| Applications | ITE (Commercial) |
|---|
| Features | - |
|---|
| Operating Temperature | -20°C ~ 80°C |
|---|
| Efficiency | 33% |
|---|
| Mounting Type | Through Hole |
|---|
| Size / Dimension | 0.71" L x 0.36" W x 0.66" H (18.0mm x 9.1mm x 16.8mm) |
|---|
| Power (Watts) - Max | 150mW |
|---|
| Line Regulation | 100mV |
|---|
| Load Regulation | 150mV |
|---|
| Approvals | - |
|---|
| Weight | - |
|---|
| Online Catalog | BP50xx Series |
|---|
