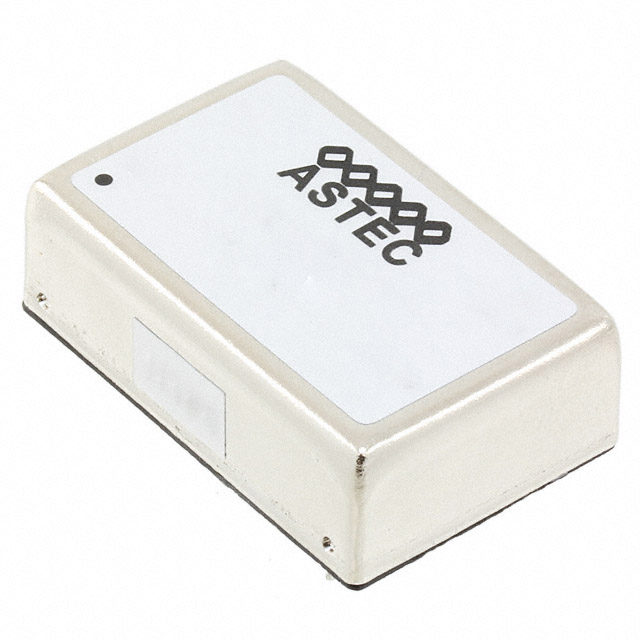

| Part Number | ASA03F24-L |
|---|
| Manufacturer | Artesyn Embedded Technologies |
|---|
| Description | CONVERT DC/DC 18-36VIN 3.3V@3A |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Power Supplies - Board Mount |
|---|
| Series | ASA |
|---|
| Family | DC DC Converters |
|---|
| PCN Packaging |
CSA Marking 20/Sep/2013
|
|---|
| Standard Package | 200 |
|---|
| Packaging | Tube |
|---|
| Type | Isolated Module |
|---|
| Number of Outputs | 1 |
|---|
| Voltage - Input (Min) | 18V |
|---|
| Voltage - Input (Max) | 36V |
|---|
| Voltage - Output 1 | 3.3V |
|---|
| Voltage - Output 2 | - |
|---|
| Voltage - Output 3 | - |
|---|
| Current - Output (Max) | 3A |
|---|
| Power (Watts) - Manufacture Series | 10W |
|---|
| Voltage - Isolation | 1.5kV (1500V) |
|---|
| Applications | ITE (Commercial) |
|---|
| Features | SCP |
|---|
| Mounting Type | Through Hole |
|---|
| Package / Case | 8-DIP Module |
|---|
| Size / Dimension | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) |
|---|
| Operating Temperature | -40°C ~ 60°C |
|---|
| Efficiency | 83% |
|---|
| Power (Watts) - Max | 10W |
|---|
| Other Names | ASA03F24L |
|---|
