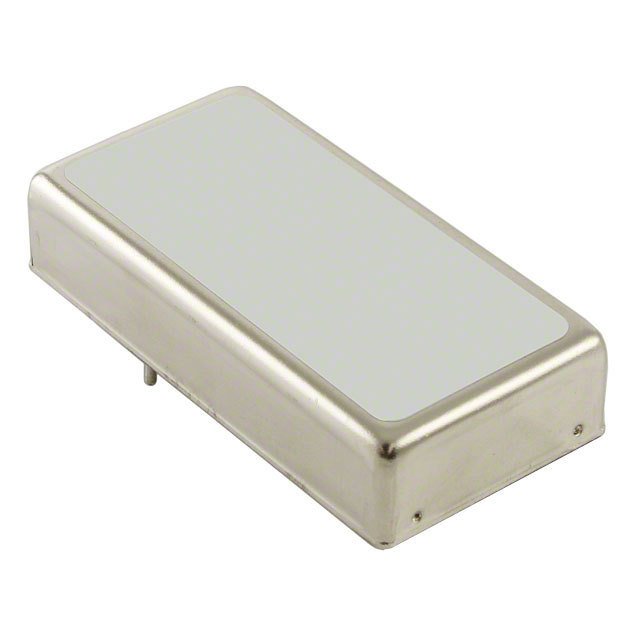

| Part Number | AEE01AA36-L |
|---|
| Manufacturer | Artesyn Embedded Technologies |
|---|
| Description | CONV DC/DC 18-75VIN +/-5V@1.5A |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Power Supplies - Board Mount |
|---|
| Series | AEE01 |
|---|
| Family | DC DC Converters |
|---|
| PCN Packaging |
CSA Marking 20/Sep/2013
|
|---|
| Standard Package | 120 |
|---|
| Packaging | Tube |
|---|
| Type | Isolated Module |
|---|
| Number of Outputs | 2 |
|---|
| Voltage - Input (Min) | 18V |
|---|
| Voltage - Input (Max) | 75V |
|---|
| Voltage - Output 1 | 5V |
|---|
| Voltage - Output 2 | -5V |
|---|
| Voltage - Output 3 | - |
|---|
| Current - Output (Max) | 1.5A, 1.5A |
|---|
| Power (Watts) - Manufacture Series | 15W |
|---|
| Voltage - Isolation | 1.5kV (1500V) |
|---|
| Applications | ITE (Commercial) |
|---|
| Features | SCP |
|---|
| Mounting Type | Through Hole |
|---|
| Package / Case | 5-DIP Module |
|---|
| Size / Dimension | 2.00" L x 1.00" W x 0.44" H (50.8mm x 25.4mm x 11.3mm) |
|---|
| Operating Temperature | -40°C ~ 71°C |
|---|
| Efficiency | 84% |
|---|
| Power (Watts) - Max | 15W |
|---|
| Other Names | AEE01AA36L |
|---|
