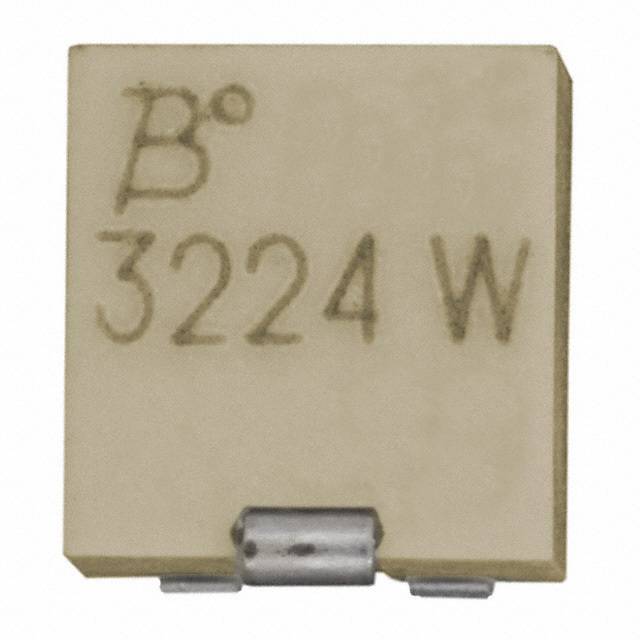

Part Number | 3224W-1-103E |
---|
Manufacturer | Bourns Inc. |
---|
Description | TRIMMER 10K OHM 0.25W SMD |
---|
Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
---|
Category | Potentiometers, Variable Resistors |
---|
Series | Trimpot? 3224 - Sealed |
---|
Family | Trimmer Potentiometers |
---|
PCN Design/Specification |
3224 Model Epoxy Color June/2007
3214, 3224 Series Plastic March/2011
|
---|
EDA / CAD Models |
Download from Accelerated Designs |
---|
Standard Package | 1 |
---|
Packaging | Digi-Reel? |
---|
Resistance (Ohms) | 10k |
---|
Power (Watts) | 0.25W, 1/4W |
---|
Tolerance | ±10% |
---|
Temperature Coefficient | ±100ppm/°C |
---|
Number of Turns | 12 |
---|
Adjustment Type | Top Adjustment |
---|
Resistive Material | Cermet |
---|
Mounting Type | Surface Mount |
---|
Termination Style | J Lead |
---|
Size / Dimension | Rectangular - 0.189" x 0.138" Face x 0.208" H (4.80mm x 3.50mm x 5.30mm) |
---|
Online Catalog | Trimpot? 3224 Series |
---|
Other Names | 3224W-103EDKR |
---|
