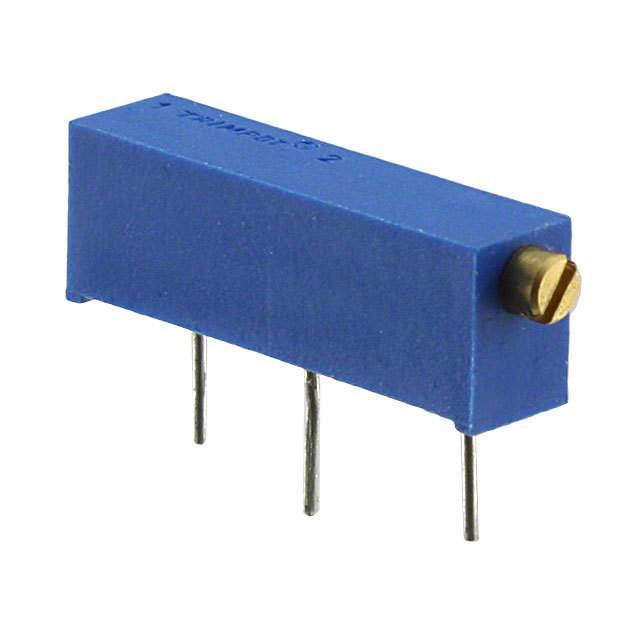

| Part Number | 3006P-1-203LF |
|---|
| Manufacturer | Bourns Inc. |
|---|
| Description | TRIMMER 20K OHM 0.75W PC PIN |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Potentiometers, Variable Resistors |
|---|
| Series | Trimpot? 3006 - Sealed |
|---|
| Family | Trimmer Potentiometers |
|---|
| PCN Assembly/Origin |
Facility Transfer Jul/2012
|
|---|
| PCN Packaging |
Min/Mult Order Quantity Apr/2013
3006 Model Sept/2013
|
|---|
| EDA / CAD Models |
Download from Accelerated Designs |
|---|
| Standard Package | 100 |
|---|
| Packaging | Tube |
|---|
| Resistance (Ohms) | 20k |
|---|
| Power (Watts) | 0.75W, 3/4W |
|---|
| Tolerance | ±10% |
|---|
| Temperature Coefficient | ±100ppm/°C |
|---|
| Number of Turns | 15 |
|---|
| Adjustment Type | Side Adjustment |
|---|
| Resistive Material | Cermet |
|---|
| Mounting Type | Through Hole |
|---|
| Termination Style | PC Pin |
|---|
| Size / Dimension | Rectangular - 0.250" x 0.190" Face x 0.750" L (6.35mm x 4.83mm x 19.05mm) |
|---|
| Online Catalog | Trimpot? 3006 Series |
|---|
| Associated Product | H-83P-ND - RETRO FIT PANEL MNT HOLDER |
|---|
| Other Names | 3006P-1-203LF-ND3006P-203LF3006P1203LF |
|---|
