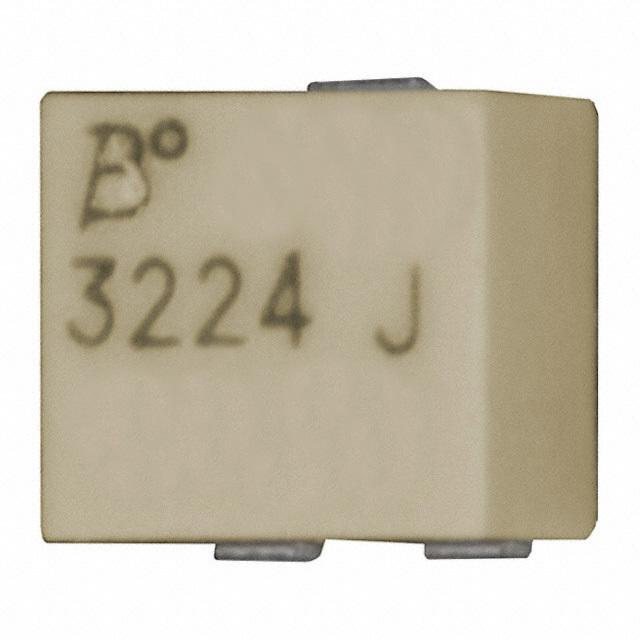

| Part Number | 3224J-1-203E |
|---|
| Manufacturer | Bourns Inc. |
|---|
| Description | TRIMMER 20K OHM 0.25W SMD |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Potentiometers, Variable Resistors |
|---|
| Series | Trimpot? 3224 - Sealed |
|---|
| Family | Trimmer Potentiometers |
|---|
| PCN Design/Specification |
3224 Model Epoxy Color June/2007
3214, 3224 Series Plastic March/2011
|
|---|
| Standard Package | 1 |
|---|
| Packaging | Digi-Reel? |
|---|
| Resistance (Ohms) | 20k |
|---|
| Power (Watts) | 0.25W, 1/4W |
|---|
| Tolerance | ±10% |
|---|
| Temperature Coefficient | ±100ppm/°C |
|---|
| Number of Turns | 12 |
|---|
| Adjustment Type | Side Adjustment |
|---|
| Resistive Material | Cermet |
|---|
| Mounting Type | Surface Mount |
|---|
| Termination Style | J Lead |
|---|
| Size / Dimension | Rectangular - 0.181" x 0.138" Face x 0.146" H (4.60mm x 3.50mm x 3.71mm) |
|---|
| Online Catalog | Trimpot? 3224 Series |
|---|
| Other Names | 3224J-203EDKR |
|---|
