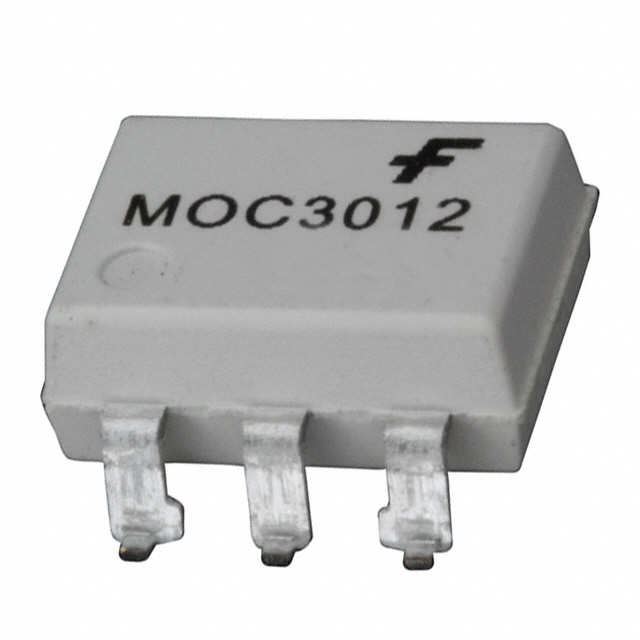

| Part Number | MOC3012SM |
|---|
| Manufacturer | Fairchild Semiconductor |
|---|
| Description | OPTOISOLATOR 4.17KV TRIAC 6SMD |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Isolators |
|---|
| Series | - |
|---|
| Family | Optoisolators - Triac, SCR Output |
|---|
| Standard Package | 1,000 |
|---|
| Packaging | Tube |
|---|
| Output Type | Triac |
|---|
| Zero Crossing Circuit | No |
|---|
| Number of Channels | 1 |
|---|
| Voltage - Isolation | 4170Vrms |
|---|
| Voltage - Off State | 250V |
|---|
| Static dV/dt (Min) | - |
|---|
| Current - LED Trigger (Ift) (Max) | 5mA |
|---|
| Current - On State (It (RMS)) (Max) | - |
|---|
| Current - Hold (Ih) | 100μA (Typ) |
|---|
| Turn On Time | - |
|---|
| Voltage - Forward (Vf) (Typ) | 1.15V |
|---|
| Current - DC Forward (If) (Max) | 60mA |
|---|
| Operating Temperature | -40°C ~ 85°C |
|---|
| Mounting Type | Surface Mount |
|---|
| Package / Case | 6-SMD |
|---|
| Supplier Device Package | 6-SMD |
|---|
| Approvals | UL |
|---|
| Online Catalog | MOC3010 thru MOC3023 Series |
|---|
| Other Names | MOC3012S-M |
|---|
