| Part Number | MOC3011SR2M |
|---|---|
| Manufacturer | Fairchild Semiconductor |
| Description | OPTOISOLATOR 4.17KV TRIAC 6SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 7,000 - Factory Stock |
| Datasheet | MOC3011SR2M |
| Minimum Order: $100 USD | |
| Request for Quote to us through Email or Phone call on quanitities greater than those displayed or for price adjustment. | |

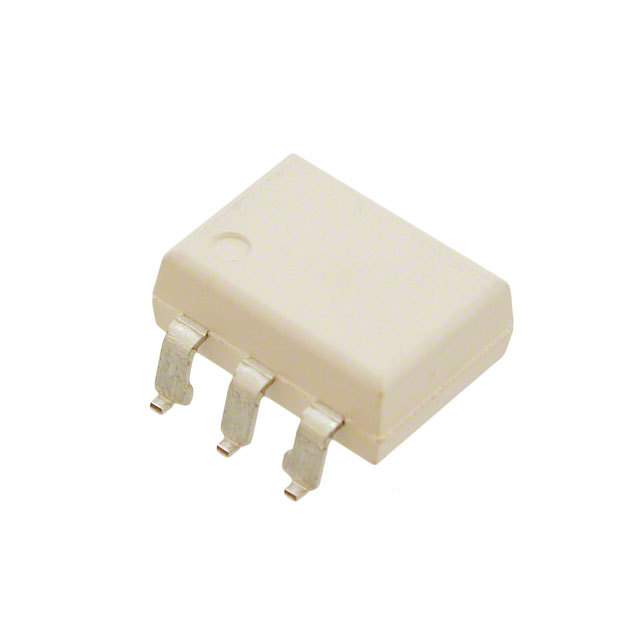

MOC3011SR2M
-
- USD 0.00
Product Details
| Part Number | MOC3011SR2M |
|---|---|
| Manufacturer | Fairchild Semiconductor |
| Description | OPTOISOLATOR 4.17KV TRIAC 6SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Category | Isolators |
| Series | - |
| Family | Optoisolators - Triac, SCR Output |
| Standard Package | 1,000 |
| Packaging | Tape & Reel (TR) |
| Output Type | Triac |
| Zero Crossing Circuit | No |
| Number of Channels | 1 |
| Voltage - Isolation | 4170Vrms |
| Voltage - Off State | 250V |
| Static dV/dt (Min) | - |
| Current - LED Trigger (Ift) (Max) | 10mA |
| Current - On State (It (RMS)) (Max) | - |
| Current - Hold (Ih) | 100μA (Typ) |
| Turn On Time | - |
| Voltage - Forward (Vf) (Typ) | 1.15V |
| Current - DC Forward (If) (Max) | 60mA |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 6-SMD |
| Supplier Device Package | 6-SMD |
| Approvals | UL |
| Other Names | MOC3011SR2M-NDMOC3011SR2MTR |
