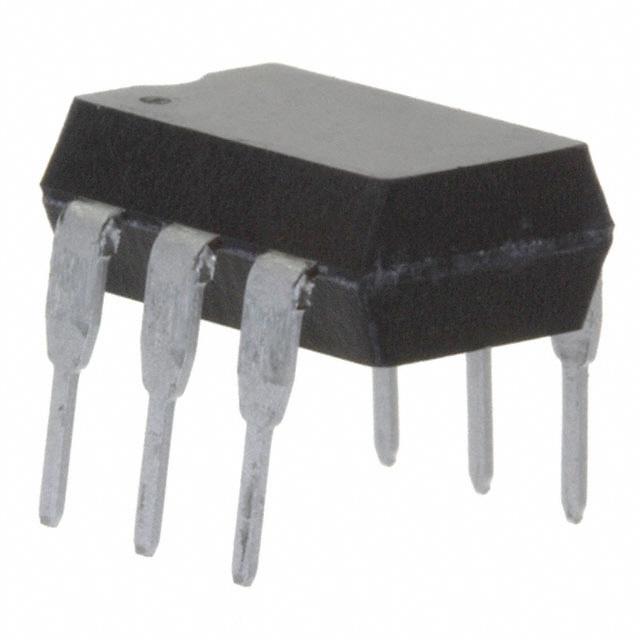

| Part Number | IL440-4 |
|---|
| Manufacturer | Vishay Semiconductor Opto Division |
|---|
| Description | OPTOISOLATOR 5.3KV TRIAC 6DIP |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Isolators |
|---|
| Series | - |
|---|
| Family | Optoisolators - Triac, SCR Output |
|---|
| Standard Package | 2,000 |
|---|
| Packaging | Tube |
|---|
| Output Type | Triac |
|---|
| Zero Crossing Circuit | No |
|---|
| Number of Channels | 1 |
|---|
| Voltage - Isolation | 5300Vrms |
|---|
| Voltage - Off State | 400V |
|---|
| Static dV/dt (Min) | 50V/μs (Typ) |
|---|
| Current - LED Trigger (Ift) (Max) | 15mA |
|---|
| Current - On State (It (RMS)) (Max) | 100mA |
|---|
| Current - Hold (Ih) | 1mA (Typ) |
|---|
| Turn On Time | - |
|---|
| Voltage - Forward (Vf) (Typ) | 1.25V |
|---|
| Current - DC Forward (If) (Max) | 60mA |
|---|
| Operating Temperature | -40°C ~ 100°C |
|---|
| Mounting Type | Through Hole |
|---|
| Package / Case | 6-DIP (0.300", 7.62mm) |
|---|
| Supplier Device Package | 6-DIP |
|---|
| Approvals | BSI, CSA, cUR, UR |
|---|
| Other Names | IL440-4GIIL440-4GI-NDIL440-4VSIL4404 |
|---|
