| Part Number | HCPL-900J |
|---|
| Manufacturer | Avago Technologies US Inc. |
|---|
| Description | DGTL ISO 2.5KV 4CH GEN PURP 16SO |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Isolators |
|---|
| Series | - |
|---|
| Family | Digital Isolators |
|---|
| Standard Package | 50 |
|---|
| Packaging | Tube |
|---|
| Technology | GMR (Giant Magnetoresistive) |
|---|
| Type | General Purpose |
|---|
| Isolated Power | No |
|---|
| Number of Channels | 4 |
|---|
| Inputs - Side 1/Side 2 | 4/0 |
|---|
| Channel Type | Unidirectional |
|---|
| Voltage - Isolation | 2500Vrms |
|---|
| Common Mode Transient Immunity (Min) | 15kV/μs |
|---|
| Data Rate | 100MBd |
|---|
| Propagation Delay tpLH / tpHL (Max) | 15ns, 15ns |
|---|
| Pulse Width Distortion (Max) | 3ns |
|---|
| Rise / Fall Time (Typ) | 1ns, 1ns |
|---|
| Voltage - Supply | 3 V ~ 5.5 V |
|---|
| Operating Temperature | -55°C ~ 125°C |
|---|

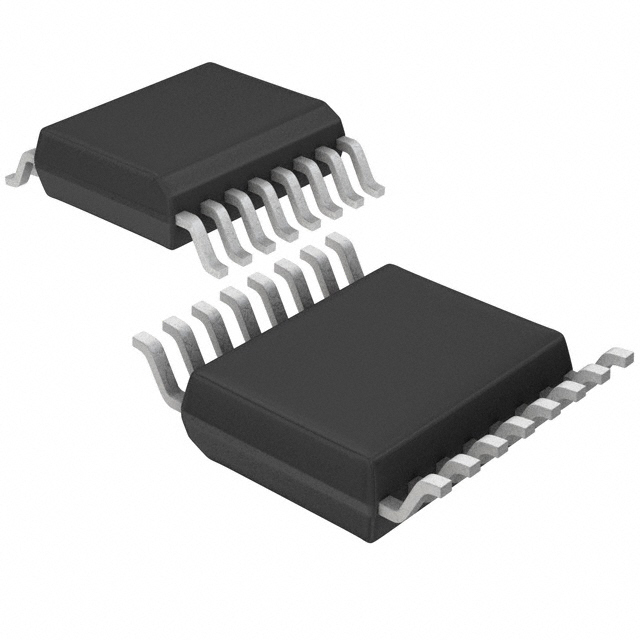

| Package / Case | 16-SOIC (0.295", 7.50mm Width) |
|---|
| Supplier Device Package | 16-SO W |
|---|
