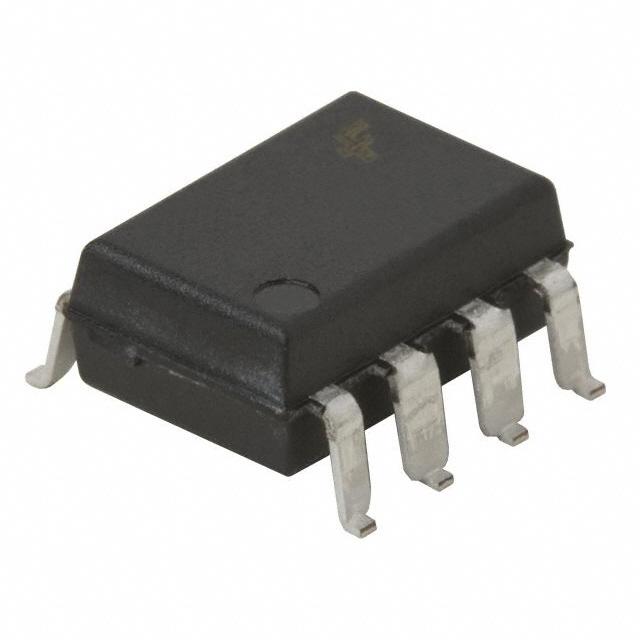

| Part Number | HCPL2601SD |
|---|---|
| Manufacturer | Fairchild Semiconductor |
| Description | OPTOISO 2.5KV OPN COLLECTOR 8SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 2,883 |
| Datasheet | HCPL2601SD |
| Minimum Order: $100 USD | |
| Request for Quote to us through Email or Phone call on quanitities greater than those displayed or for price adjustment. | |
HCPL2601SD
-
- USD 0.00
Product Details
| Part Number | HCPL2601SD |
|---|---|
| Manufacturer | Fairchild Semiconductor |
| Description | OPTOISO 2.5KV OPN COLLECTOR 8SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Category | Isolators |
| Series | - |
| Family | Optoisolators - Logic Output |
| Standard Package | 1 |
| Packaging | Cut Tape (CT) |
| Number of Channels | 1 |
| Inputs - Side 1/Side 2 | 1/0 |
| Voltage - Isolation | 2500Vrms |
| Common Mode Transient Immunity (Min) | 5kV/μs |
| Input Type | DC |
| Output Type | Open Collector |
| Current - Output / Channel | 50mA |
| Data Rate | 10Mbps |
| Propagation Delay tpLH / tpHL (Max) | 75ns, 75ns |
| Rise / Fall Time (Typ) | 50ns, 12ns |
| Voltage - Forward (Vf) (Typ) | 1.4V |
| Current - DC Forward (If) (Max) | 50mA |
| Voltage - Supply | 4.5 V ~ 5.5 V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-SMD |
| Supplier Device Package | 8-SMD |
| Online Catalog | HCPL-2601/2611 Series |
| Other Names | HCPL2601SDCT |
