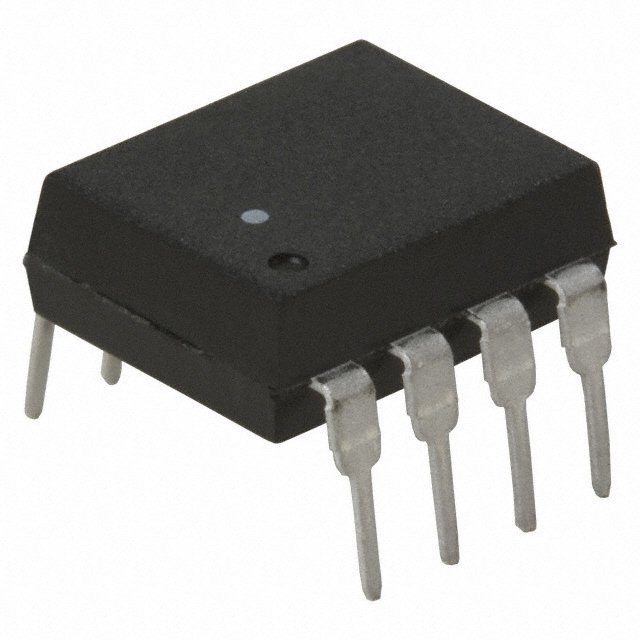

| Part Number | HCNW2601 |
|---|
| Manufacturer | Avago Technologies US Inc. |
|---|
| Description | OPTOISO 5KV OPEN COLLECTOR 8DIP |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Isolators |
|---|
| Series | - |
|---|
| Family | Optoisolators - Logic Output |
|---|
| PCN Packaging |
Multiple Devices Marking/Labeling 07/Aug/2013
Marking/Labeling Revision B 14/Jan/2014
|
|---|
| Standard Package | 42 |
|---|
| Packaging | Tube |
|---|
| Number of Channels | 1 |
|---|
| Inputs - Side 1/Side 2 | 1/0 |
|---|
| Voltage - Isolation | 5000Vrms |
|---|
| Common Mode Transient Immunity (Min) | 10kV/μs |
|---|
| Input Type | DC |
|---|
| Output Type | Open Collector, Schottky Clamped |
|---|
| Current - Output / Channel | 50mA |
|---|
| Data Rate | 10MBd |
|---|
| Propagation Delay tpLH / tpHL (Max) | 100ns, 100ns |
|---|
| Rise / Fall Time (Typ) | 24ns, 10ns |
|---|
| Voltage - Forward (Vf) (Typ) | 1.64V |
|---|
| Current - DC Forward (If) (Max) | 20mA |
|---|
| Voltage - Supply | 4.5 V ~ 5.5 V |
|---|
| Operating Temperature | -40°C ~ 85°C |
|---|
| Mounting Type | Through Hole |
|---|
| Package / Case | 8-DIP (0.400", 10.16mm) |
|---|
| Supplier Device Package | 8-DIP |
|---|
| Other Names | 516-1074-5 |
|---|
