| Part Number | H11N1SR2M |
|---|---|
| Manufacturer | Fairchild Semiconductor |
| Description | OPTOISO 4.17KV OPN COLL 6SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 1,767 2,000 - Factory Stock |
| Datasheet | H11N1SR2M |
| Minimum Order: $100 USD | |
| Request for Quote to us through Email or Phone call on quanitities greater than those displayed or for price adjustment. | |

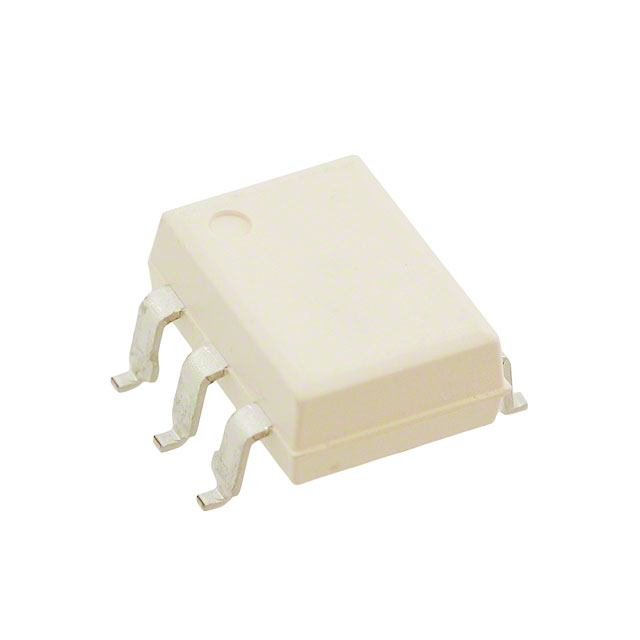

H11N1SR2M
-
- USD 0.00
Product Details
| Part Number | H11N1SR2M |
|---|---|
| Manufacturer | Fairchild Semiconductor |
| Description | OPTOISO 4.17KV OPN COLL 6SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Category | Isolators |
| Series | - |
| Family | Optoisolators - Logic Output |
| PCN Design/Specification | Datasheet Update 11/Jun/2014 |
| Standard Package | 1 |
| Packaging | Digi-Reel? |
| Number of Channels | 1 |
| Inputs - Side 1/Side 2 | 1/0 |
| Voltage - Isolation | 4170Vrms |
| Common Mode Transient Immunity (Min) | - |
| Input Type | DC |
| Output Type | Open Collector |
| Current - Output / Channel | 50mA |
| Data Rate | 5MHz |
| Propagation Delay tpLH / tpHL (Max) | 330ns, 330ns |
| Rise / Fall Time (Typ) | 7.5ns, 12ns |
| Voltage - Forward (Vf) (Typ) | 1.4V |
| Current - DC Forward (If) (Max) | 30mA |
| Voltage - Supply | 4 V ~ 15 V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 6-SMD, Gull Wing |
| Supplier Device Package | 6-SMD |
| Online Catalog | H11N1M/2M/3M Series |
| Other Names | H11N1SR2MDKR |
