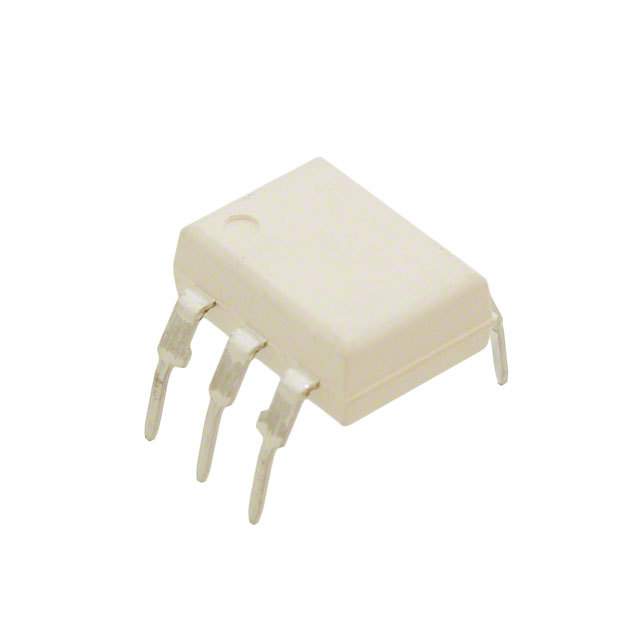

| Part Number | H11L2M |
|---|
| Manufacturer | Fairchild Semiconductor |
|---|
| Description | OPTOISO 4.17KV OPN COLL 6DIP |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Isolators |
|---|
| Series | - |
|---|
| Family | Optoisolators - Logic Output |
|---|
| PCN Design/Specification |
Datasheet Update 11/Jun/2014
|
|---|
| Standard Package | 1,000 |
|---|
| Packaging | Tube |
|---|
| Number of Channels | 1 |
|---|
| Inputs - Side 1/Side 2 | 1/0 |
|---|
| Voltage - Isolation | 4170Vrms |
|---|
| Common Mode Transient Immunity (Min) | - |
|---|
| Input Type | DC |
|---|
| Output Type | Open Collector |
|---|
| Current - Output / Channel | 50mA |
|---|
| Data Rate | 1MHz |
|---|
| Propagation Delay tpLH / tpHL (Max) | 4μs, 4μs |
|---|
| Rise / Fall Time (Typ) | 100ns, 100ns |
|---|
| Voltage - Forward (Vf) (Typ) | 1.2V |
|---|
| Current - DC Forward (If) (Max) | 30mA |
|---|
| Voltage - Supply | 3 V ~ 15 V |
|---|
| Operating Temperature | -40°C ~ 85°C |
|---|
| Mounting Type | Through Hole |
|---|
| Package / Case | 6-DIP (0.300", 7.62mm) |
|---|
| Supplier Device Package | 6-DIP |
|---|
| Online Catalog | H11L1M/2M/3M Series |
|---|
| Other Names | H11L2-MH11L2-MQTH11L2-MQT-ND |
|---|
