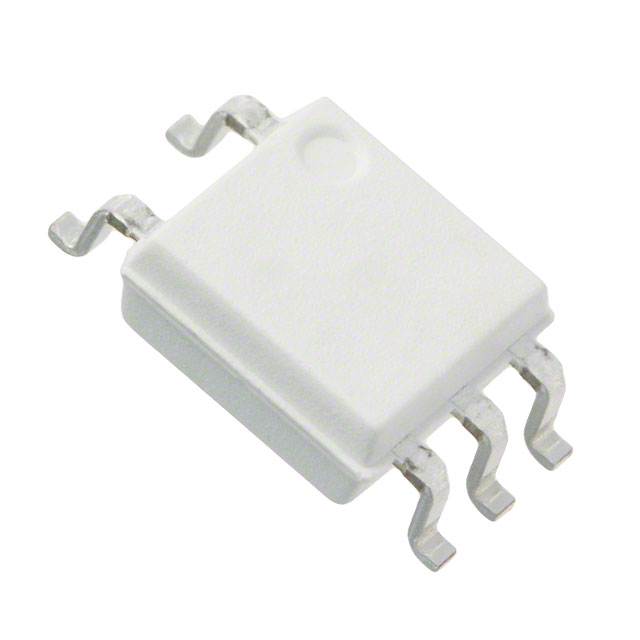

| Part Number | FODM611 |
|---|
| Manufacturer | Fairchild Semiconductor |
|---|
| Description | OPTOISO 3.75KV OPEN COLL 5MFP |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Isolators |
|---|
| Series | - |
|---|
| Family | Optoisolators - Logic Output |
|---|
| Standard Package | 3,000 |
|---|
| Packaging | Tube |
|---|
| Number of Channels | 1 |
|---|
| Inputs - Side 1/Side 2 | 1/0 |
|---|
| Voltage - Isolation | 3750Vrms |
|---|
| Common Mode Transient Immunity (Min) | 20kV/μs |
|---|
| Input Type | DC |
|---|
| Output Type | Open Collector, Schottky Clamped |
|---|
| Current - Output / Channel | 50mA |
|---|
| Data Rate | 10Mbps |
|---|
| Propagation Delay tpLH / tpHL (Max) | 100ns, 100ns |
|---|
| Rise / Fall Time (Typ) | 20ns, 10ns |
|---|
| Voltage - Forward (Vf) (Typ) | 1.45V |
|---|
| Current - DC Forward (If) (Max) | 50mA |
|---|
| Voltage - Supply | 4.5 V ~ 5.5 V |
|---|
| Operating Temperature | -40°C ~ 85°C |
|---|
| Mounting Type | Surface Mount |
|---|
| Package / Case | 6-SMD (5 Leads), Gull Wing |
|---|
| Supplier Device Package | 5-MFP |
|---|
| Online Catalog | FODM611 Series |
|---|
