| Part Number | FODM3082 |
|---|---|
| Manufacturer | Fairchild Semiconductor |
| Description | OPTOISOLATOR 3.75KV TRIAC 4MFP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 10,000 |
| Datasheet | FODM3082 |
| Minimum Order: $100 USD | |
| Request for Quote to us through Email or Phone call on quanitities greater than those displayed or for price adjustment. | |
FODM3082
-
- USD 0.00
Product Details
| Part Number | FODM3082 |
|---|---|
| Manufacturer | Fairchild Semiconductor |
| Description | OPTOISOLATOR 3.75KV TRIAC 4MFP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Category | Isolators |
| Series | - |
| Family | Optoisolators - Triac, SCR Output |
| Standard Package | 3,000 |
| Packaging | Tube |
| Output Type | Triac |
| Zero Crossing Circuit | Yes |
| Number of Channels | 1 |
| Voltage - Isolation | 3750Vrms |
| Voltage - Off State | 800V |
| Static dV/dt (Min) | 600V/μs |
| Current - LED Trigger (Ift) (Max) | 10mA |
| Current - On State (It (RMS)) (Max) | 70mA |
| Current - Hold (Ih) | 300μA (Typ) |
| Turn On Time | - |
| Voltage - Forward (Vf) (Typ) | 1.5V (Max) |
| Current - DC Forward (If) (Max) | 60mA |
| Operating Temperature | -40°C ~ 100°C |
| Mounting Type | Surface Mount |

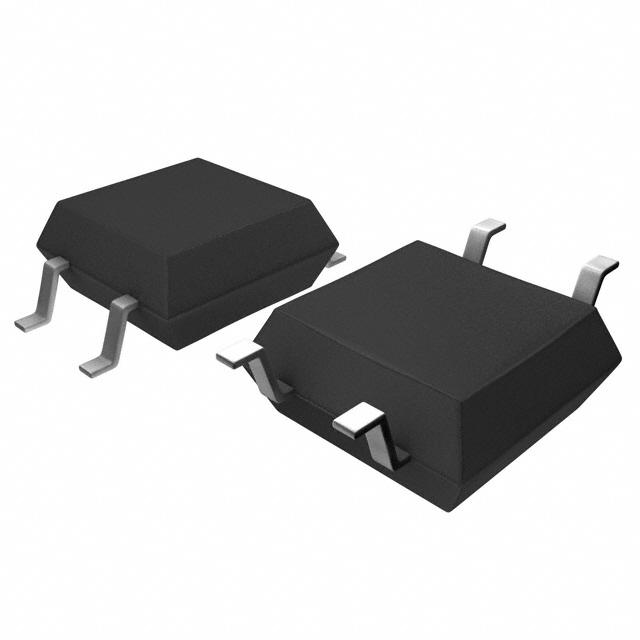

| Package / Case | 4-SMD, Gull Wing |
| Supplier Device Package | 4-MFP |
| Approvals | cUL, UL |
