| Part Number | APT1211SX |
|---|
| Manufacturer | Panasonic Electric Works |
|---|
| Description | OPTOISOLATOR 3.75KV TRIAC 4SOP |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Isolators |
|---|
| Series | - |
|---|
| Family | Optoisolators - Triac, SCR Output |
|---|
| Other Related Documents |
How to Read Date Codes
|
|---|
| Standard Package | 1,000 |
|---|
| Packaging | Tape & Reel (TR) |
|---|
| Output Type | Triac |
|---|
| Zero Crossing Circuit | Yes |
|---|
| Number of Channels | 1 |
|---|
| Voltage - Isolation | 3750Vrms |
|---|
| Voltage - Off State | 600V |
|---|
| Static dV/dt (Min) | 500V/μs |
|---|
| Current - LED Trigger (Ift) (Max) | 10mA |
|---|
| Current - On State (It (RMS)) (Max) | 50mA |
|---|
| Current - Hold (Ih) | 3.5mA |
|---|
| Turn On Time | 100μs (Max) |
|---|
| Voltage - Forward (Vf) (Typ) | 1.21V |
|---|
| Current - DC Forward (If) (Max) | 50mA |
|---|
| Operating Temperature | -40°C ~ 100°C |
|---|
| Mounting Type | Surface Mount |
|---|

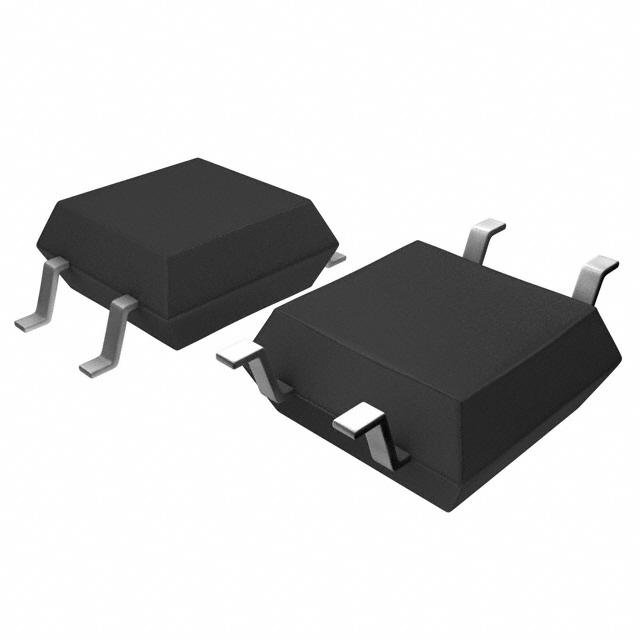

| Package / Case | 4-SMD, Gull Wing |
|---|
| Supplier Device Package | 4-SOP |
|---|
| Approvals | cUR, VDE |
|---|
