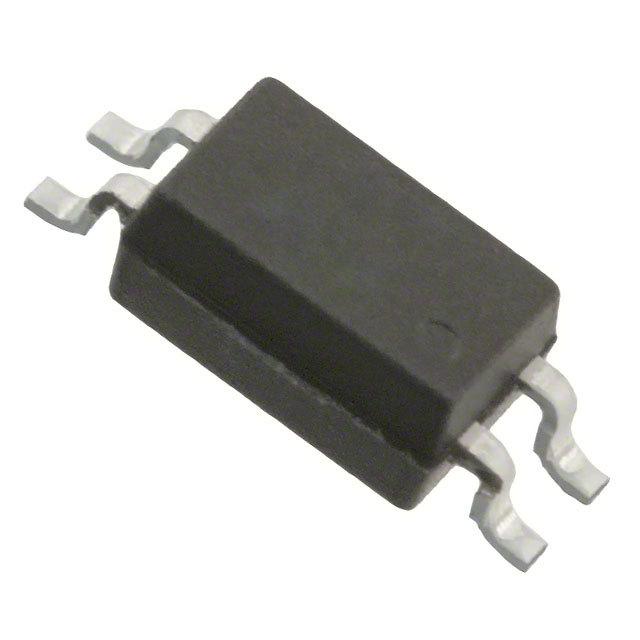

| Part Number | ACPL-217-56AE |
|---|
| Manufacturer | Avago Technologies US Inc. |
|---|
| Description | OPTOISOLATOR 3KV TRANS 4SOIC |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Isolators |
|---|
| Series | - |
|---|
| Family | Optoisolators - Transistor, Photovoltaic Output |
|---|
| Standard Package | 1 |
|---|
| Packaging | Cut Tape (CT) |
|---|
| Number of Channels | 1 |
|---|
| Voltage - Isolation | 3000Vrms |
|---|
| Current Transfer Ratio (Min) | 80% @ 5mA |
|---|
| Current Transfer Ratio (Max) | 160% @ 5mA |
|---|
| Turn On / Turn Off Time (Typ) | 3μs, 3μs |
|---|
| Rise / Fall Time (Typ) | 2μs, 3μs |
|---|
| Input Type | DC |
|---|
| Output Type | Transistor |
|---|
| Voltage - Output (Max) | 80V |
|---|
| Current - Output / Channel | 50mA |
|---|
| Voltage - Forward (Vf) (Typ) | 1.2V |
|---|
| Current - DC Forward (If) (Max) | 50mA |
|---|
| Vce Saturation (Max) | 400mV |
|---|
| Operating Temperature | -55°C ~ 110°C |
|---|
| Mounting Type | Surface Mount |
|---|
| Package / Case | 4-SOIC (0.173", 4.40mm) |
|---|
| Supplier Device Package | 4-SO |
|---|
| Online Catalog | ACPL-217 Series |
|---|
| Other Names | 516-2464-1 |
|---|
