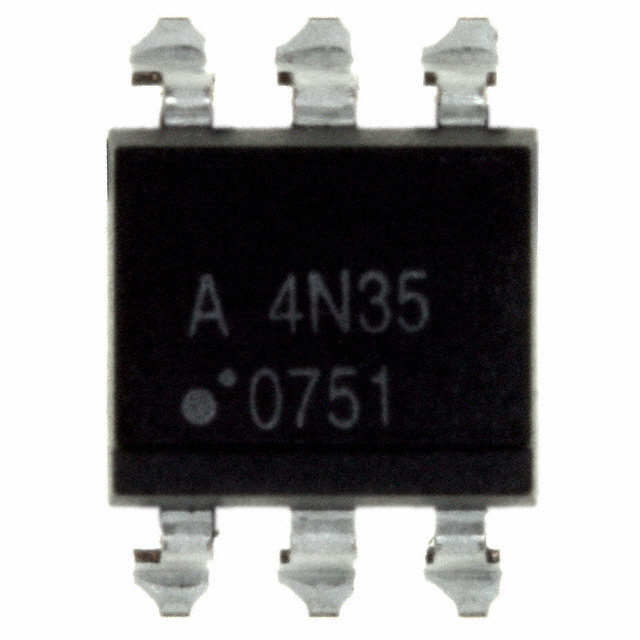

| Part Number | 4N35-300E |
|---|
| Manufacturer | Avago Technologies US Inc. |
|---|
| Description | OPTOISO 3.55KV TRANS W/BASE 6SMD |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Isolators |
|---|
| Series | - |
|---|
| Family | Optoisolators - Transistor, Photovoltaic Output |
|---|
| Standard Package | 65 |
|---|
| Packaging | Tube |
|---|
| Number of Channels | 1 |
|---|
| Voltage - Isolation | 3550Vrms |
|---|
| Current Transfer Ratio (Min) | 100% @ 10mA |
|---|
| Current Transfer Ratio (Max) | - |
|---|
| Turn On / Turn Off Time (Typ) | - |
|---|
| Rise / Fall Time (Typ) | 3μs, 3μs |
|---|
| Input Type | DC |
|---|
| Output Type | Transistor with Base |
|---|
| Voltage - Output (Max) | 30V |
|---|
| Current - Output / Channel | 100mA |
|---|
| Voltage - Forward (Vf) (Typ) | 1.2V |
|---|
| Current - DC Forward (If) (Max) | 60mA |
|---|
| Vce Saturation (Max) | 300mV |
|---|
| Operating Temperature | -55°C ~ 100°C |
|---|
| Mounting Type | Surface Mount |
|---|
| Package / Case | 6-SMD, Gull Wing |
|---|
| Supplier Device Package | 6-SMD |
|---|
| Online Catalog | 4N35 Series |
|---|
| Other Names | 4N35-300E-ND4N35300E516-1730-5 |
|---|
