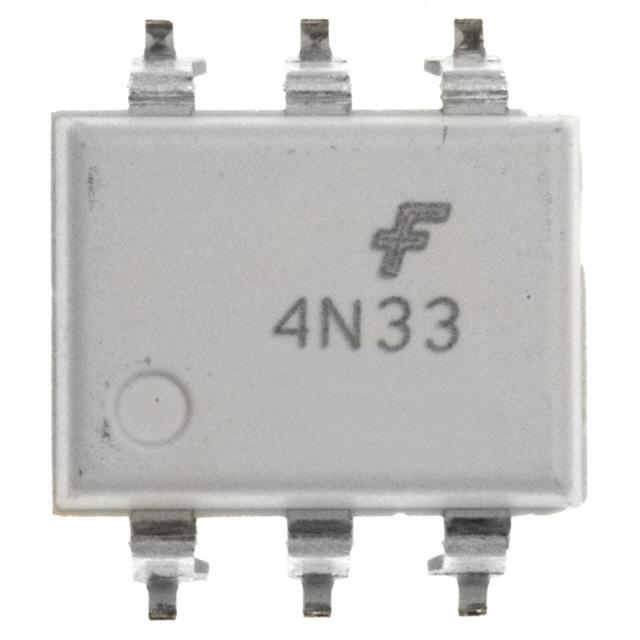

| Part Number | 4N33SR2M |
|---|
| Manufacturer | Fairchild Semiconductor |
|---|
| Description | OPTOISO 4.17KV DARL W/BASE 6SMD |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Isolators |
|---|
| Series | - |
|---|
| Family | Optoisolators - Transistor, Photovoltaic Output |
|---|
| Standard Package | 1 |
|---|
| Packaging | Digi-Reel? |
|---|
| Number of Channels | 1 |
|---|
| Voltage - Isolation | 4170Vrms |
|---|
| Current Transfer Ratio (Min) | 500% @ 10mA |
|---|
| Current Transfer Ratio (Max) | - |
|---|
| Turn On / Turn Off Time (Typ) | 5μs, 100μs (Max) |
|---|
| Rise / Fall Time (Typ) | - |
|---|
| Input Type | DC |
|---|
| Output Type | Darlington with Base |
|---|
| Voltage - Output (Max) | 30V |
|---|
| Current - Output / Channel | 150mA |
|---|
| Voltage - Forward (Vf) (Typ) | 1.2V |
|---|
| Current - DC Forward (If) (Max) | 80mA |
|---|
| Vce Saturation (Max) | 1V |
|---|
| Operating Temperature | -40°C ~ 100°C |
|---|
| Mounting Type | Surface Mount |
|---|
| Package / Case | 6-SMD, Gull Wing |
|---|
| Supplier Device Package | 6-SMD |
|---|
| Online Catalog | 4N29M, 30M, 32M, 33M Series |
|---|
| Other Names | 4N33SR2MDKR |
|---|
