| Part Number | SC616N |
|---|
| Manufacturer | Mallory Sonalert Products Inc. |
|---|

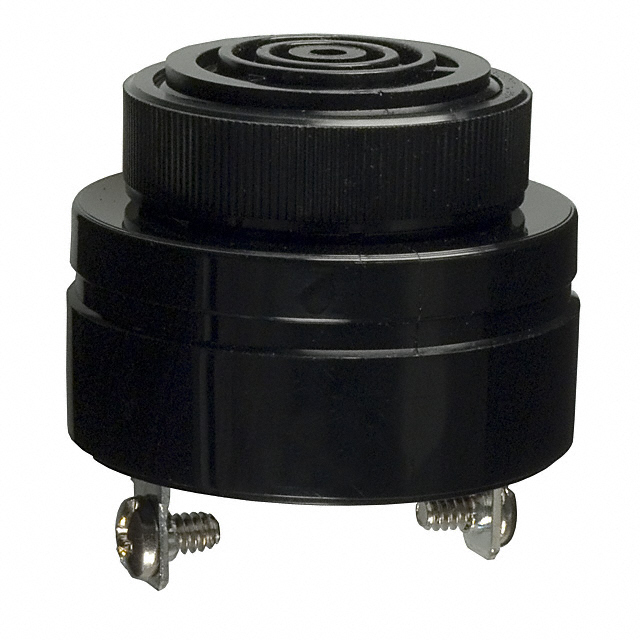

| Description | BUZZER PIEZO 42.9MM PANEL MOUNT |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Audio Products |
|---|
| Series | SC |
|---|
| Family | Buzzers |
|---|
| Standard Package | 1 |
|---|
| Packaging | Bulk |
|---|
| Driver Circuitry | Indicator, Internally Driven |
|---|
| Technology | Piezo |
|---|
| Input Type | DC |
|---|
| Voltage - Rated | - |
|---|
| Voltage Range | 6 ~ 16V |
|---|
| Frequency | 2.9kHz |
|---|
| Operating Mode | Continuous |
|---|
| Sound Pressure Level | 80dB @ 6V, 61cm |
|---|
| Current - Supply | 6 ~ 22mA |
|---|
| Operating Temperature | -30°C ~ 65°C |
|---|
| Washable | No |
|---|
| Port Location | Top |
|---|
| Mounting Type | Panel Mount |
|---|
| Termination | Screw Terminals |
|---|
| Size / Dimension | 42.9mm Dia x 48.5mm H |
|---|
| Capacitance @ Frequency | - |
|---|
| Associated Product |
458-1109-ND
- GASKET NEMA 4X FOR 1SC SERIES
458-1047-ND
- CONTROL MANUAL VOLUME
|
|---|
| Other Names | 458-1024 |
|---|
