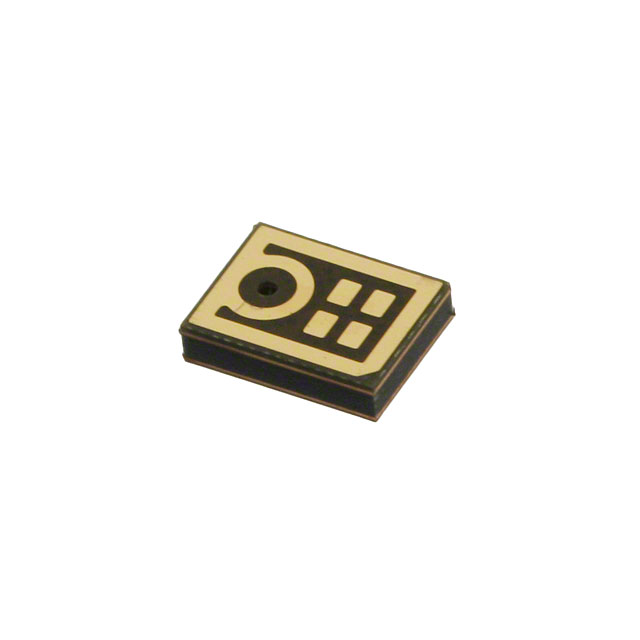

| Part Number | MP34DB01 |
|---|
| Manufacturer | STMicroelectronics |
|---|
| Description | MIC MEMS DIGITAL PDM OMNI -26DB |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Audio Products |
|---|
| Series | - |
|---|
| Family | Microphones |
|---|
| Standard Package | 490 |
|---|
| Packaging | Tray |
|---|
| Type | MEMS (Silicon) |
|---|
| Output Type | Digital, PDM |
|---|
| Direction | Omnidirectional |
|---|
| Frequency Range | 20Hz ~ 20kHz |
|---|
| Sensitivity | -26dB ±3dB @ 94dB SPL |
|---|
| S/N Ratio | 62.6dB |
|---|
| Impedance | - |
|---|
| Voltage - Rated | 1.64 ~ 3.6V |
|---|
| Current - Supply | 650μA |
|---|
| Port Location | Bottom |
|---|
| Seal Rating | None |
|---|
| Termination | Solder Pads |
|---|
| Size / Dimension | 4.00mm L x 3.00mm W |
|---|
| Height (Max) | 1.10mm |
|---|
| Shape | Rectangular |
|---|
| For Use With |
497-13607-ND
- BOARD EVAL FOR MP34DB01
497-13231-ND
- BOARD EVAL MEMS MIC MP34DB01
497-14495-ND
- BOARD EVAL STA321MPL MP34DB01
497-15192-ND
- BOARD USB MP34DB01 STM32
|
|---|
