| Part Number | PKM13EPYH4002-B0 |
|---|---|
| Manufacturer | Murata Electronics North America |
| Description | BUZZER PIEZO 30VP-P 4KHZ PC MT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 6,825 |
| Datasheet | PKM13EPYH4002-B0 |
| Minimum Order: $100 USD | |
| Request for Quote to us through Email or Phone call on quanitities greater than those displayed or for price adjustment. | |
PKM13EPYH4002-B0
-
- USD 0.73
Product Details
| Part Number | PKM13EPYH4002-B0 |
|---|---|
| Manufacturer | Murata Electronics North America |
| Description | BUZZER PIEZO 30VP-P 4KHZ PC MT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Category | Audio Products |
| Series | PK |
| Family | Buzzers |
| Standard Package | 1,980 |
| Packaging | Bulk |
| Driver Circuitry | Transducer, Externally Driven |
| Technology | Piezo |
| Input Type | peak-peak Signal |
| Voltage - Rated | 3Vp-p |
| Voltage Range | 30V (Max) |
| Frequency | 4kHz |
| Operating Mode | Continuous |
| Sound Pressure Level | 70dB @ 3V, 10cm |
| Current - Supply | - |
| Operating Temperature | -40°C ~ 85°C |
| Washable | No |
| Mounting Type | Through Hole |
| Termination | PC Pins |

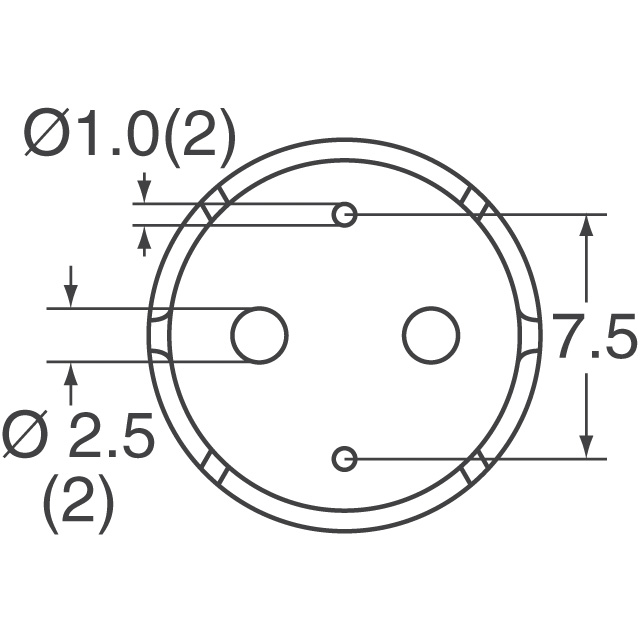

| Size / Dimension | 12.6mm Dia x 7.4mm H |
| Capacitance @ Frequency | 5500pF @ 1kHz |
| Online Catalog | PK Series |
| Other Names | 490-4697PKM13EPYH4002B0 |
