| Part Number | MP33AB01HTR |
|---|---|
| Manufacturer | STMicroelectronics |

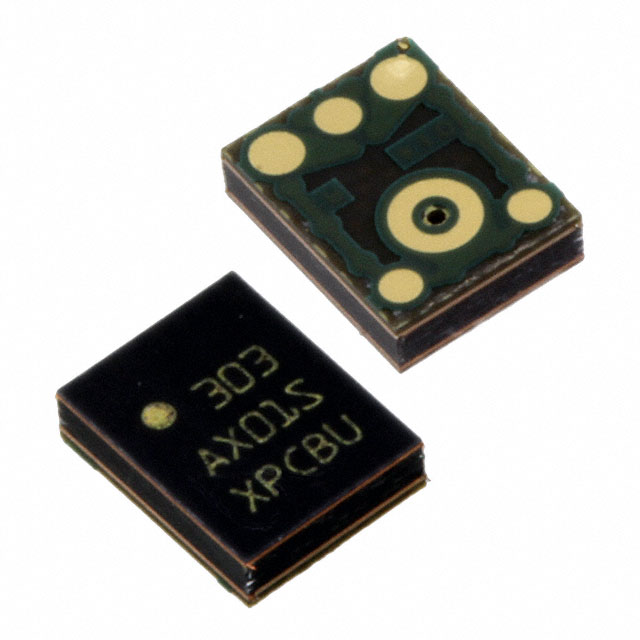

| Description | IC MEMS LP MICROPHONE RHLGA |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 3,683 |
| Datasheet | MP33AB01HTR |
| Minimum Order: $100 USD | |
| Request for Quote to us through Email or Phone call on quanitities greater than those displayed or for price adjustment. | |
MP33AB01HTR
-
- USD 0.00
Product Details
| Part Number | MP33AB01HTR |
|---|---|
| Manufacturer | STMicroelectronics |
| Description | IC MEMS LP MICROPHONE RHLGA |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Category | Audio Products |
| Series | - |
| Family | Microphones |
| Standard Package | 1 |
| Packaging | Digi-Reel? |
| Type | MEMS (Silicon) |
| Output Type | Analog |
| Direction | Omnidirectional |
| Frequency Range | 20Hz ~ 20kHz |
| Sensitivity | -38dB ±3dB @ 94dB SPL |
| S/N Ratio | 66dB |
| Impedance | - |
| Voltage - Rated | 2.2V |
| Current - Supply | 250μA |
| Port Location | Bottom |
| Seal Rating | None |
| Termination | Solder Pads |
| Size / Dimension | 3.76mm L x 2.95mm W |
| Height (Max) | 1.10mm |
| Shape | Rectangular |
| Online Catalog | MP Series |
| For Use With | 497-14496-ND - DAUGHTERBOARD 4COUPON MP33AB01H |
| Other Names | 497-14062-6 |
