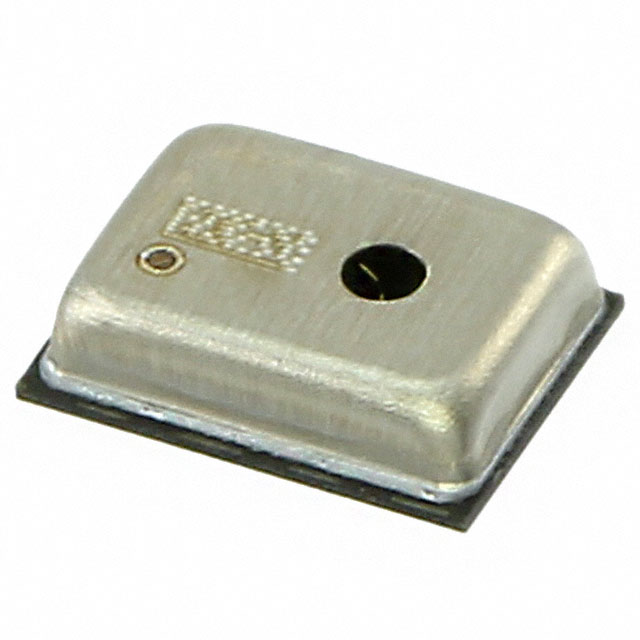

| Part Number | MP34DT01TR-M |
|---|---|
| Manufacturer | STMicroelectronics |
| Description | MIC MEMS DIGITAL PDM OMNI 5HCLGA |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 3,380 |
| Datasheet | MP34DT01TR-M |
| Minimum Order: $100 USD | |
| Request for Quote to us through Email or Phone call on quanitities greater than those displayed or for price adjustment. | |
MP34DT01TR-M
-
- USD 0.00
Product Details
| Part Number | MP34DT01TR-M |
|---|---|
| Manufacturer | STMicroelectronics |
| Description | MIC MEMS DIGITAL PDM OMNI 5HCLGA |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Category | Audio Products |
| Series | - |
| Family | Microphones |
| Product Training Modules | Digital MEMS Microphones – Part 2 |
| Standard Package | 1 |
| Packaging | Cut Tape (CT) |
| Type | MEMS (Silicon) |
| Output Type | Digital, PDM |
| Direction | Omnidirectional |
| Frequency Range | 20Hz ~ 10kHz |
| Sensitivity | -26dB ±3dB @ 94dB SPL |
| S/N Ratio | 61dB |
| Impedance | - |
| Voltage - Rated | 1.64 ~ 3.6V |
| Current - Supply | 600μA |
| Port Location | Top |
| Seal Rating | None |
| Termination | Solder Pads |
| Size / Dimension | 4.00mm L x 3.00mm W |
| Height (Max) | * |
| Shape | Rectangular |
| Online Catalog | MP Series |
| For Use With | 497-15713-ND - BOARD EXPANSION X-NUCLEO |
| Other Names | 497-15102-1 |
