| Part Number | GW5BWF15L00 |
|---|
| Manufacturer | Sharp Microelectronics |
|---|
| Description | LED MOD 7WATT ZENIGATA 5000K |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Optoelectronics |
|---|
| Series | - |
|---|
| Family | LED Lighting - COBs, Engines, Modules |
|---|
| Design Resources |
Lighting Product Selector
|
|---|
| PCN Obsolescence/ EOL |
GW5Bxx15Lxx 14/Oct/2011
|
|---|
| Standard Package | 400 |
|---|
| Packaging | Tray |
|---|
| Type | Chip On Board (COB) |
|---|
| Color | White, Cool |
|---|
| CCT (K) | 5000K |
|---|
| Wavelength | - |
|---|
| Configuration | Square |
|---|
| Flux @ Current/Temperature - Test | 540 lm (Typ) |
|---|
| Current - Test | 640mA |
|---|
| Temperature - Test | 25°C |
|---|
| Voltage - Forward (Vf) (Typ) | 10.2V |
|---|
| Lumens/Watt @ Current - Test | 83 lm/W |
|---|
| Current - Max | 640mA |
|---|
| CRI (Color Rendering Index) | - |
|---|
| Viewing Angle | - |
|---|
| Features | - |
|---|

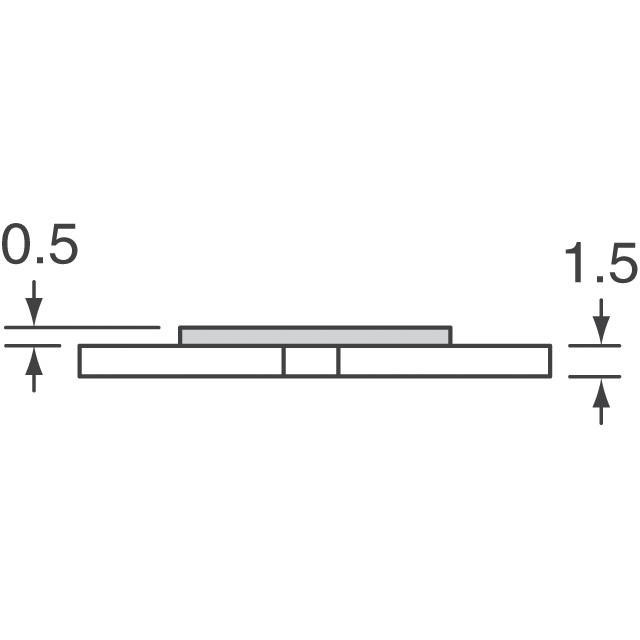

| Size / Dimension | 18.00mm L x 18.00mm W |
|---|
| Height | 2.00mm |
|---|
| Light Emitting Surface (LES) | - |
|---|
| Lens Type | Flat |
|---|
| Other Names | 425-2738GW5BWF15L02 |
|---|
