| Part Number | XPEAMB-L1-0000-00201 |
|---|
| Manufacturer | Cree Inc. |
|---|

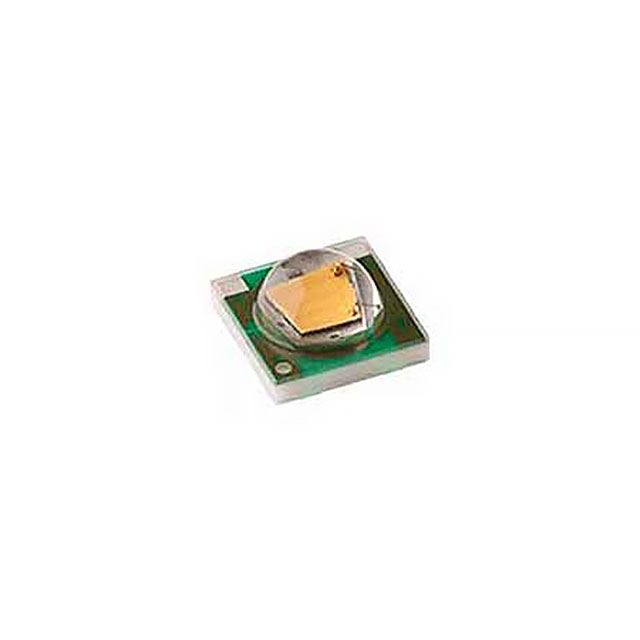

| Description | LED AMBER 500MA 3.45X3.45 SMD |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Optoelectronics |
|---|
| Series | XLamp? XP-E |
|---|
| Family | LED Lighting - Color |
|---|
| Design Resources |
Lighting Product Selector
|
|---|
| Standard Package | 1,000 |
|---|
| Packaging | Tape & Reel (TR) |
|---|
| Color | Amber |
|---|
| Wavelength | 590nm (585nm ~ 595nm) |
|---|
| Flux @ 25°C, Current - Test | 43 lm (40 lm ~ 46 lm) |
|---|
| Current - Test | 350mA |
|---|
| Voltage - Forward (Vf) (Typ) | 2.1V |
|---|
| Current - Max | 500mA |
|---|
| Viewing Angle | 130° |
|---|
| Mounting Type | Surface Mount |
|---|
| Package / Case | 2-SMD, No Lead, Exposed Pad |
|---|
| Lumens/Watt @ Current - Test | 54 lm/W |
|---|
| Flux @ 85°C, Current - Test | 13 lm |
|---|
| Thermal Resistance of Package | 10°C/W |
|---|
| Associated Product | 711-1127-ND - LENS/HOLDER CREE XP-E,C,G711-1181-ND - LED REFLECTORC13253_TINA2-R-CLIP16-ND - REFLECTOR ROUND 1 POS 16.1MM D 1CA11525_LAURA-REF-W-ND - LENS ASSY 1POS 21.6MM SQ 13.1MMFA11948_JULIA-A-ND - ASSEMBLY ROUND 1 POS 18.8MM D 4.FCA12077_IRIS-ND - LENS ASSY 1POS 38MM RND 27.1MM |
|---|
