| Part Number | HDSP-7401-DE000 |
|---|
| Manufacturer | Avago Technologies US Inc. |
|---|

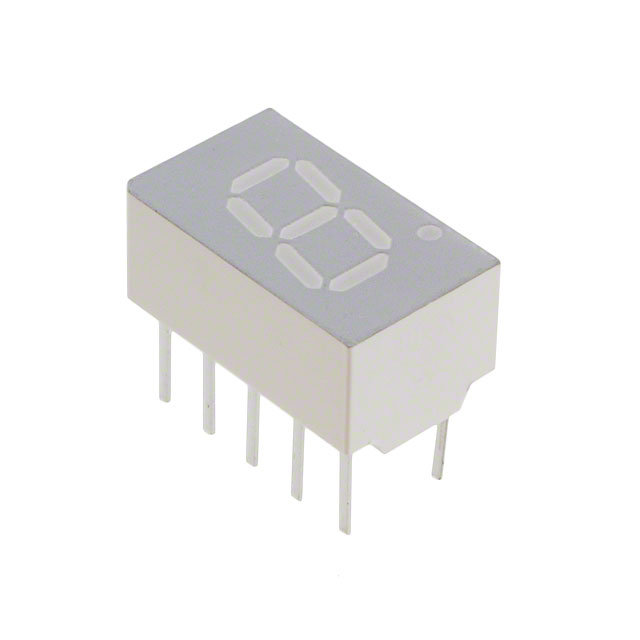

| Description | DISPLAY 7SEGMENT YELLOW CA 0.3" |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Optoelectronics |
|---|
| Series | - |
|---|
| Family | Display Modules - LED Character and Numeric |
|---|
| PCN Obsolescence/ EOL |
Multiple Devices 12/Jan/2015
|
|---|
| PCN Design/Specification |
Alternate Scrambler/Painter 12/Nov/2014
|
|---|
| Standard Package | 200 |
|---|
| Number of Characters | 1 |
|---|
| Size / Dimension | 0.500" H x 0.300" W x 0.240" D (12.70mm x 7.62mm x 6.09mm) |
|---|
| Digit/Alpha Size | 0.30" (7.62mm) |
|---|
| Display Type | 7-Segment |
|---|
| Common Pin | Common Anode |
|---|
| Color | Yellow |
|---|
| Voltage - Forward (Vf) (Typ) | 2.2V |
|---|
| Current - Test | 20mA |
|---|
| Millicandela Rating | 2.74mcd |
|---|
| Wavelength - Peak | 583nm |
|---|
| Power Dissipation (Max) | 80mW |
|---|
| Package / Case | 10-DIP (0.200", 5.08mm) |
|---|
| Other Names | 516-2740HDSP-7401-DE000-NDHDSP7401DE000 |
|---|
